Буровая установка для свайного фундамента SR-515 SR-520 Малая сваебойная установка
SR-515 SR-520 Crawler Type Small pile foundation drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction. This small rotary bore pile drilling rig drilling depth is 15-20m. Matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
Foundation Drilling Rig Main Features:
It has high drilling efficiency, flexible and convenient for moving and transporting to next working site, is a national high-speed rail construction-specific piling machinery equipment. This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, гравий; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
Small Piling Rig Advantages:
Flexible: The whole tonnage is small, simple operating, moving fast, convenient transition.
High returns: Small investment, quick gains, economic advantages can not be replaced.
Technology patents: Patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small piling machine to drill big piling hole.
SR-515 SR-520 Small Pile Drilling Rig Technical parameters:
| Модель | SR-515 | SR-520 |
| Working mode | hydraulic oil cylinder pressure | |
| Диаметр сверления (миллиметр) | Φ500-Φ1500 | |
| drilling depth (m) | 15 | 20 |
| Измерение(миллиметр) | 7500X2300X2950 | 8200X2200X2950 |
| The total weight(t) | 13.5 | 16 |
| Powerhead torque(Н.М.) | 17000-22000 | |
| Скорость вращения (об/мин) | 30-50 | |
| Max lifting capacity (КН) | 150 | |
| Max stroke (m) | 11-22 | |
| Wire-line diameter (миллиметр) | 16 | |
| Rotation angle ( °) | 360 | |
| Скорость передвижения (км/ч) | 3-5 | |
| Max gradeability ( °) | 25 | |
| Мощность дизельного двигателя (КВТ) | 110КВТ, Cummins engine | |
| Diesel engine rotary speed (об/мин) | 2200 | |

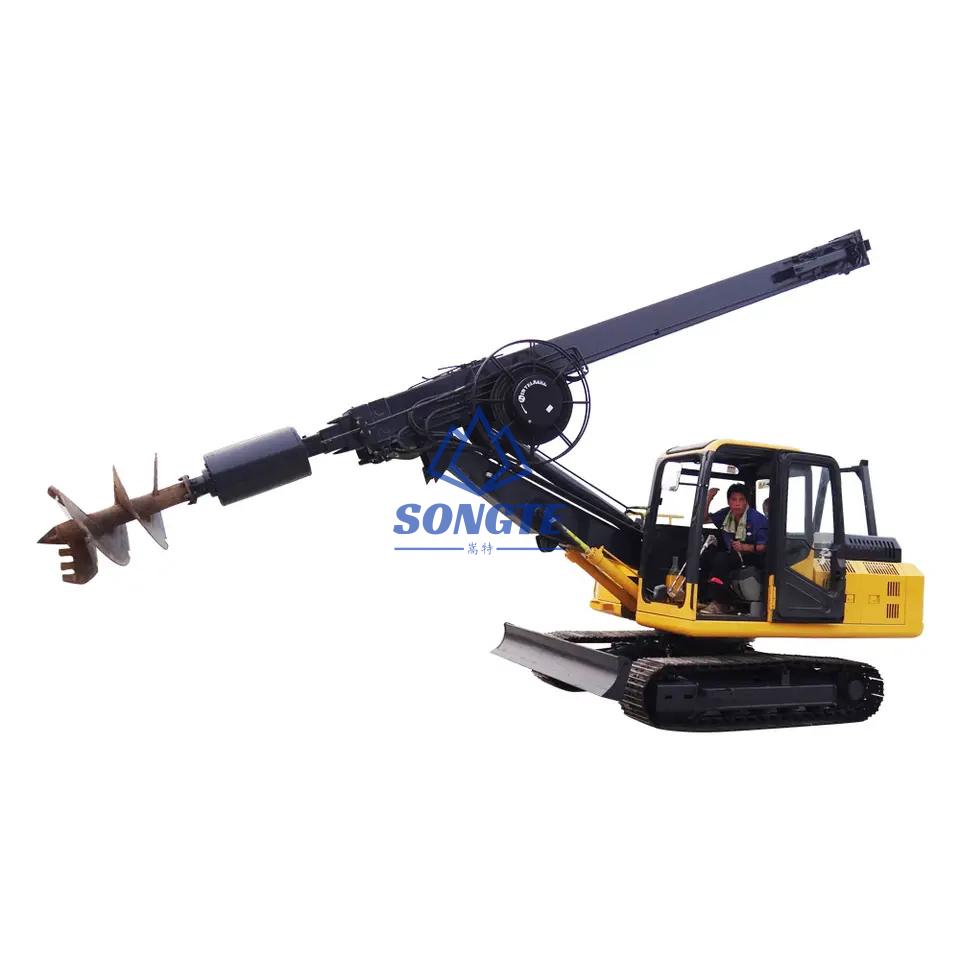

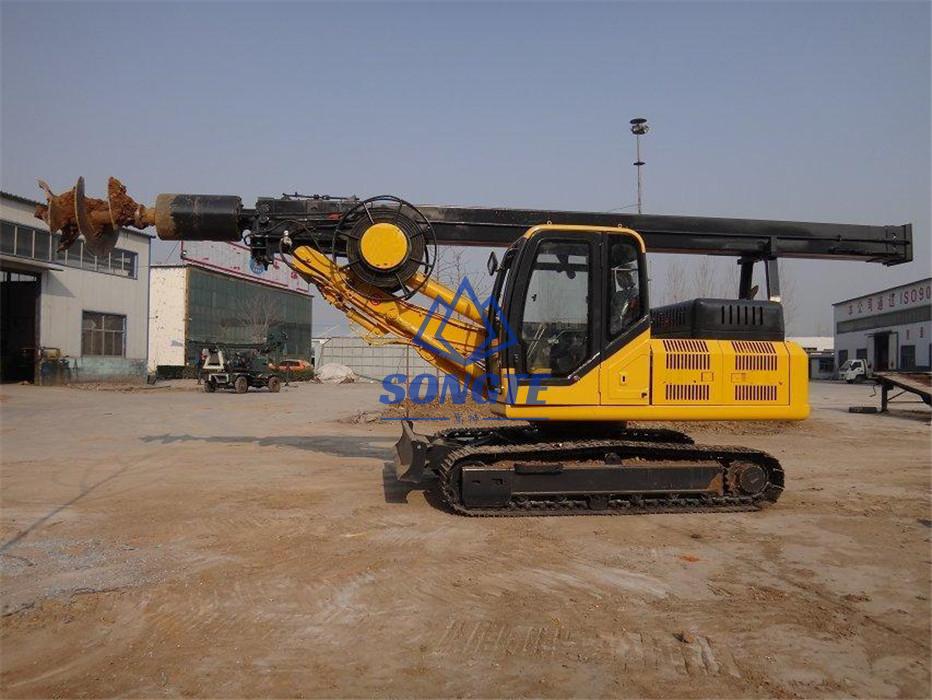

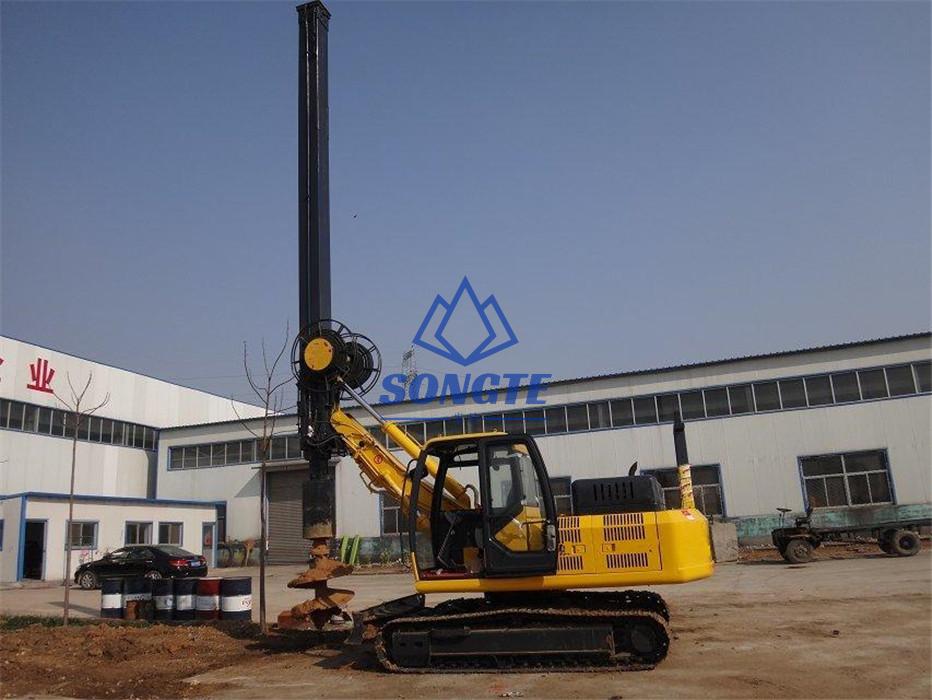

Small Rotary Piling Rig With Auger Bit:
