WT series automatic mapping mining locator is based on the earth’s electromagnetic field as the field source, based on the difference in the conductivity of different underground geological structures, and by studying the variation law of the electric field components at different frequencies to study the geological structure and changes, it widely used in the search for exploration of metal ores and non-metallic minerals, Инженерно-геологические изыскания, and geological disaster exploration.
Mine Locator Features:
- The instrument can automatic mapping and get result on site.
- Apply to multiple and complex terrain exploration.
- Selected the depth according to your demand, 150m/300m/600m/900m/1200m/1500m
- It is intelligent, inexperienced people can learn the operation in five minutes.
- Fast measurement, strong anti-interference ability, high accuracy, it widely used in the search for multi geological exploration of metal ores, non-metallic minerals, mineral veins direction.
- The free and professional technical guidance 24 hours online.
- No need to register, it is ready to use.
- No network required, no traffic required.
Mine Locator Technical Parameters:
Модель | WT700 | WT900 | WT1200 |
Detecting depth | 150m/300m/500m/600m | 150m/300m/600m/1200m | 600m/900m/1500m |
Frequency | Единственный, three, 68 | Единственный, three, 68 | Единственный, three, custom 98 |
Channel | 8 | 8 | 8 |
Working temperature | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ |
Дисплей | 7-inch HD touch screen | 7-inch HD touch screen | 7-inch HD touch screen |
Measuring method | Single freq
Three freq Profile survey |
Single freq
Three freq Profile survey |
Single freq
Three freq Profile survey |

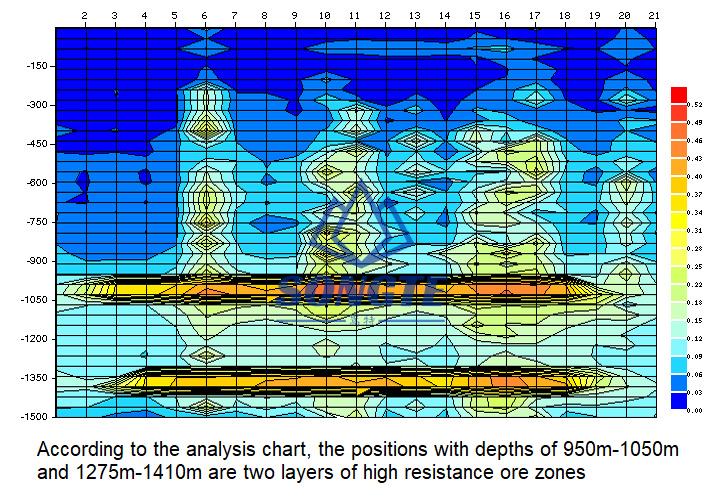

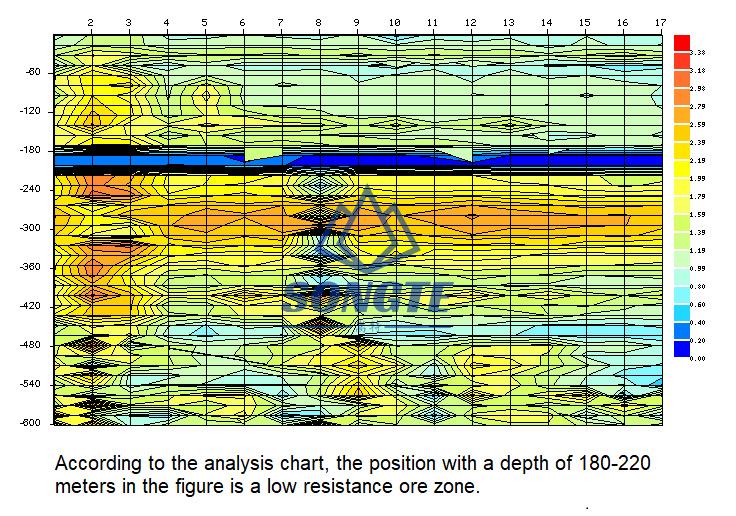

Mine Locator Automatic Mapping Mining Locator Results:
