Дизель-генераторная установка стационарного типа и мобильного типа
SG series generator sets are widely used in industries such as electricity, Коммуникационная информация, ценные бумаги, аэрокосмический, интернет, логистика, Железные дороги, нефтехимический, Автомагистралей, Больницы, Заводов, копи, судостроение, аквакультура, недвижимость, Мощность судна, Инженерный аварийный ремонт, и являются одним из идеальных источников аварийного питания.
Our generator sets have a variety of engine brands to choose from, such as Yuchai, Камминз, Volvo, Перкинс, Doosan, и так далее., with reliable quality, stable power supply, and economic savings.
Disel Generator Set Main features:
- The cylinder body of the diesel generator set is designed to be sturdy and durable, with low vibration and noise; Four stroke, Бесперебойная работа, Высокая эффективность; Replace the wet cylinder liner, with long service life and convenient maintenance; Two cylinders with one cover, four valves per cylinder, sufficient intake, forced water cooling, low thermal radiation, and excellent performance.
- Equipped with fuel supply and return one-way valves, it is safe and reliable to use.
- The generator is equipped with a dry air filter and air resistance indicator, and uses an exhaust gas turbocharger to ensure sufficient intake air and guaranteed performance.
- The engine set has strong adaptability, with strong high altitude operation ability, low temperature operation, and heavy load continuous operation ability. The engine can operate freely at an altitude of – 40 Кому 60 degrees Celsius and 5200 Метров, and can output at full load without affecting the output ability.
- Digital control system; According to different needs of users, we can provide products with different functions such as remote computer remote control, group control, telemetry, automatic parallel operation, and automatic fault protection.
Disel Generator Set Technical Parameters:
Модель | Main power (КВТ) | Standby power (КВТ) | Electric current (A) | Измерение (миллиметр) | Вес (кг) | Марка дизельного двигателя |
SG20GF | 20 | 22 | 36 | 1680x730x1100 | 715 | Камминз / Ючай / Перкинс / Volvo / и так далее |
SG30GF | 30 | 33 | 54 | 1800x730x1100 | 900 | |
SG50GF | 50 | 55 | 90 | 1900x740x1200 | 880 | |
SG80GF | 80 | 90 | 144 | 2330x800x1200 | 1138 | |
SG100GF | 100 | 110 | 180 | 2200x800x1350 | 1188 | |
SG110GF | 110 | 121 | 198 | 2400x880x1360 | 1180 | |
SG120GF | 120 | 132 | 216 | 2400x800x1350 | 1485 | |
SG150GF | 150 | 163 | 270 | 2500x900x1400 | 1732 | |
SG160GF | 160 | 180 | 288 | 2600x960x1500 | 1798 | |
SG200GF | 200 | 220 | 360 | 2560x950x1450 | 2580 | |
SG220GF | 220 | 250 | 396 | 3000x1000x1780 | 2700 | |
SG250GF | 250 | 275 | 450 | 3000x1050x1800 | 2860 | |
SG280GF | 280 | 308 | 504 | 3000x1700x1750 | 3050 | |
SG300GF | 300 | 330 | 540 | 3150x1050x1750 | 2904 | |
SG330GF | 330 | 360 | 648 | 3300x1150x1800 | 3150 | |
SG360GF | 360 | 396 | 648 | 3050x1150x1800 | 3135 | |
SG400GF | 400 | 440 | 720 | 3480x1200x2000 | 3916 | |
SG500GF | 500 | 550 | 900 | 3550x1580x2100 | 4433 | |
SG600GF | 600 | 660 | 1080 | 3600x1650x2240 | 6500 |

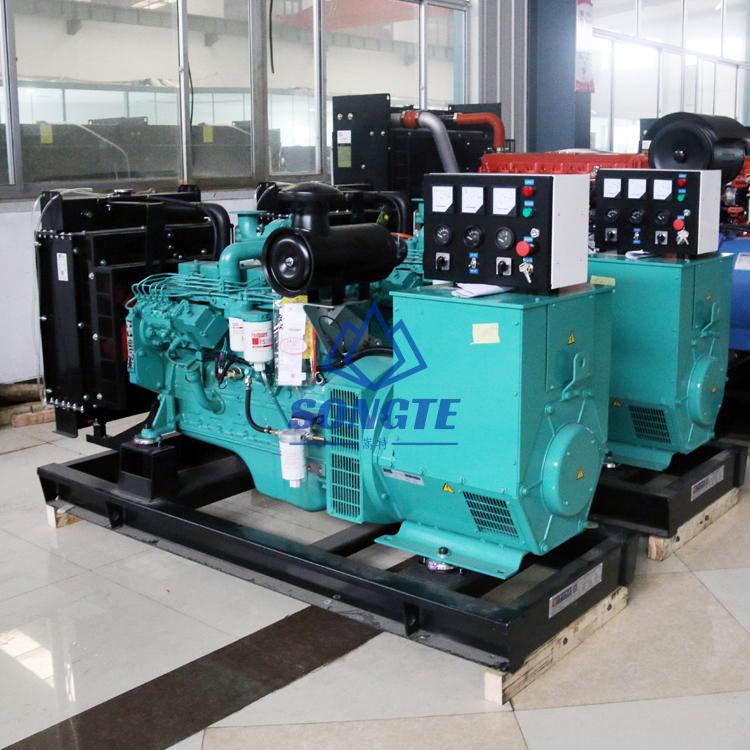

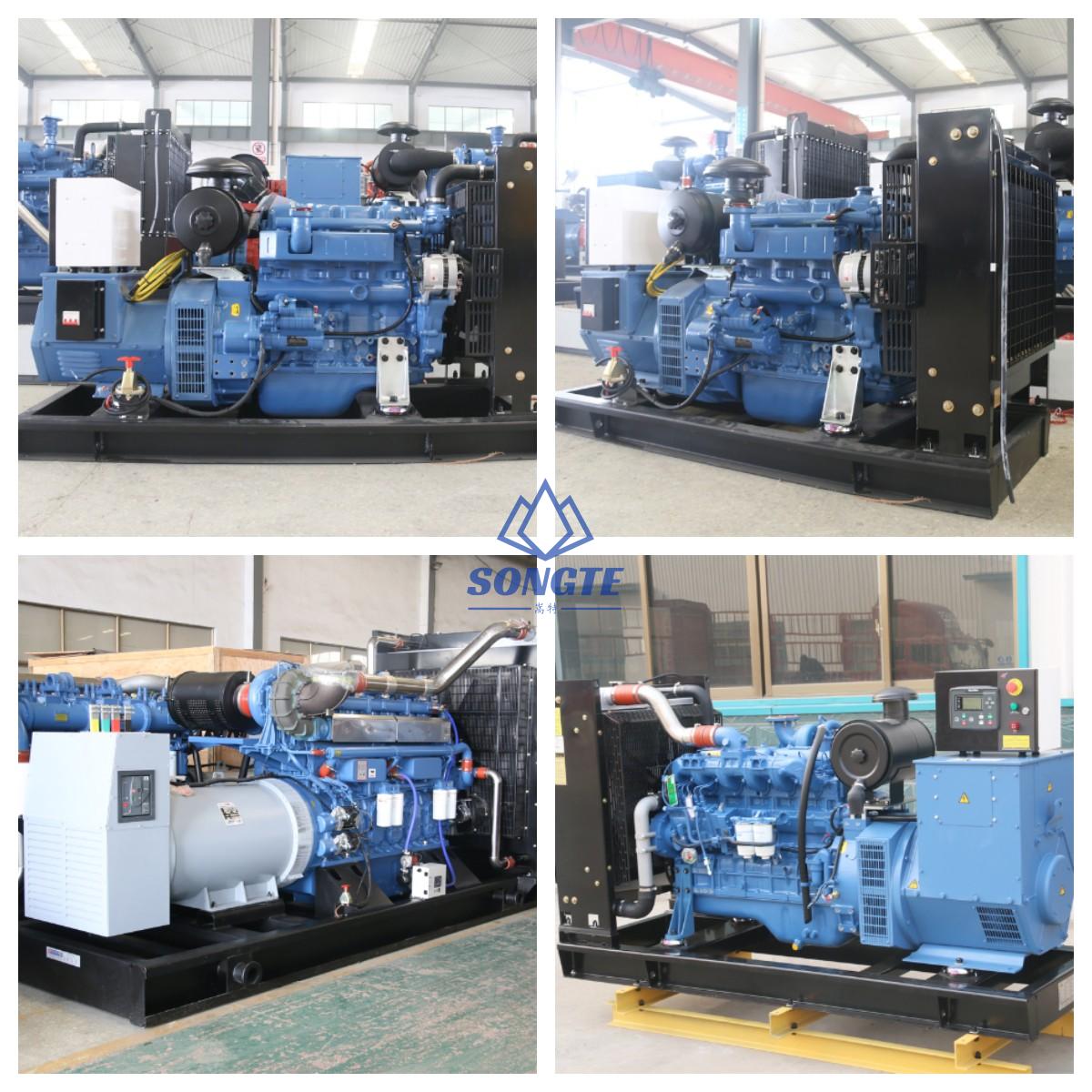

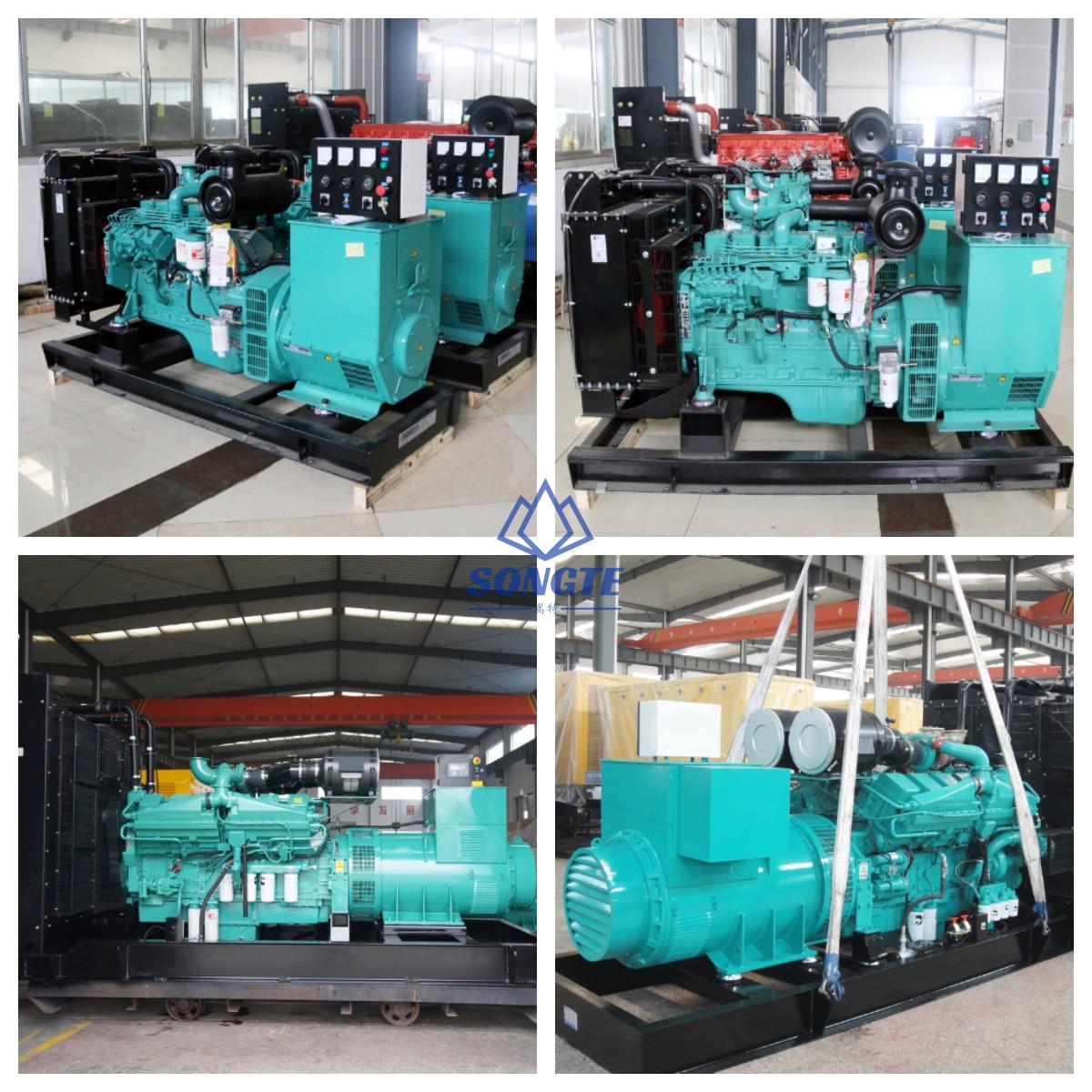

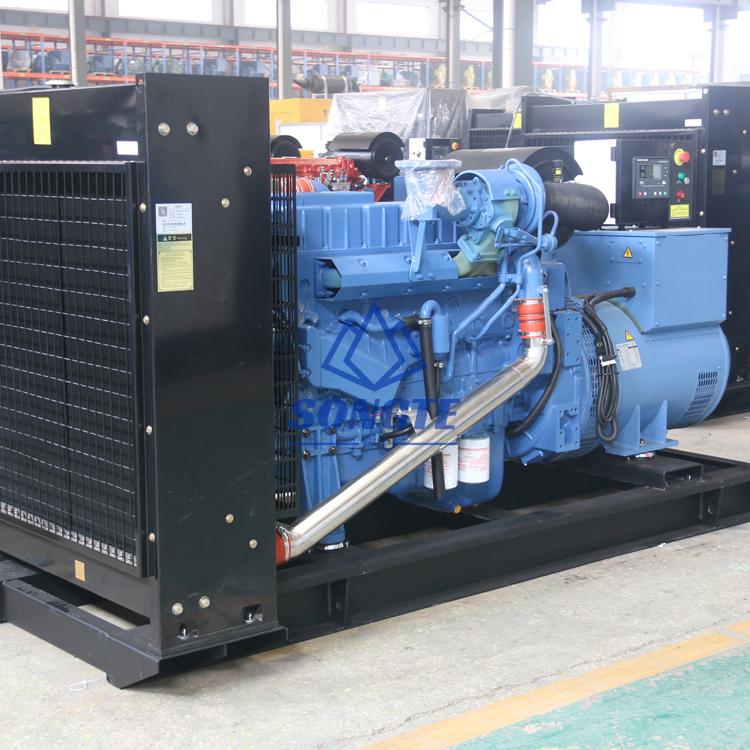

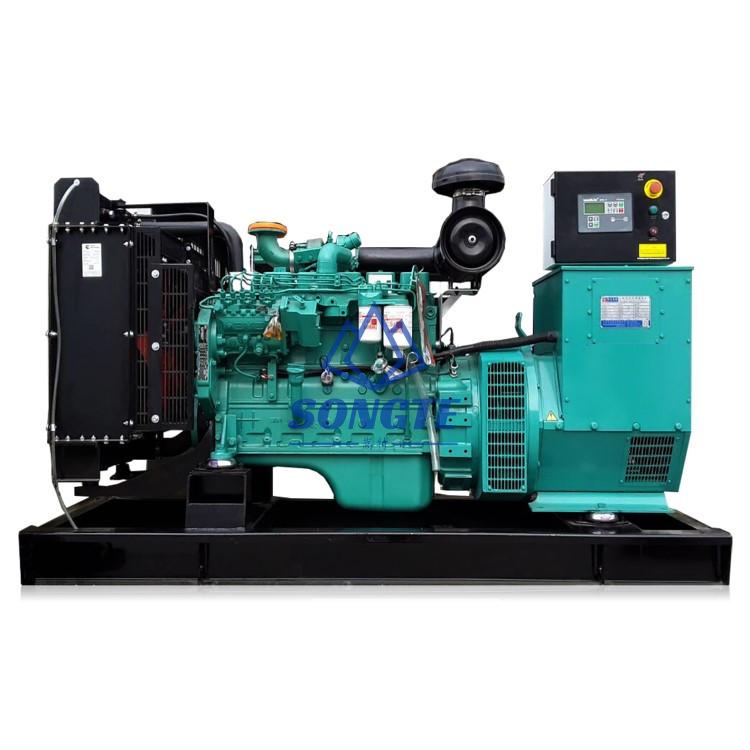

Disel Generator Sets in Stock:
