Буровой насос серии BW
BW series mud pump is widely used to transfer water, mud and other flushing fluids when drilling in water well, oil and gas well area, such as mining, drilling, уголь, железная дорога, шоссе, water conservancy and hydropower, bridges. It can be also used for high-rise buildings, foundation reinforcement works.
BW Series Mud Pump Features:
*Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
*High quality pump parts, less wearing parts, long service life, low construction cost.
*It has fast suction-discharge speed, high pump efficiency.
*Mud pump has less noise and dust, environmental operation.
BW Series Mud Pump Technical Parameters:
| Модель | BW150 | БВ160/10 | БВ250 | BW320 | BW450 | BW600 | BW850/2 | ||
| Тип | Horizontal three cylinder reciprocating single acting piston pump |
Horizontal three cylinder reciprocating single acting piston pump |
Horizontal three cylinder reciprocating single acting piston pump |
Horizontal three cylinder reciprocating single acting piston pump |
Horizontal three cylinder reciprocating single acting piston pump |
Горизонтальный трехцилиндровый поршневой насос одностороннего действия | Horizontal double cylinder reciprocating double acting piston pump |
||
| Cylinder dia.(миллиметр) | 70 | 70 | 100 | 80 | 100 | 100 | 150 | ||
| Удар(миллиметр) | 80 | 70 | 80 | 65 | 110 | 85 | 110 | 180 | |
| Pump Speed(times/min) | 57,86,130,222 | 47,71,107,183 | 200,132,83,55 | 200,116,72,42 | 200,116,72,42 | 214,153,109,78 | 170,115 | 232,162,109,76 | 82/58 |
| Течь(Л/мин) | 38,58,90,150 | 32,47,72,125 | 160,107,67,44 | 250,145,90,52 | 166,96,60,35 | 320,230,165,118 | 450,350 | 600,415,280,195 | 850/600 |
| Давление(Мпа) | 7,4.8,3.2,1.8 | 7,6,4,2.3 | 2.5,4,6.5,10 | 2.5,4.5,6,6 | 4,6,7,7 | 2.2,3.6,6.2,10 | 1.2,2 | 3.5,5,7.5,10 | 2.0 /3.0 |
| Сила(Квт) | 7.5 | 11 | 15 | 45 | 18.5 | 55 | 37 | ||
| Измерение(миллиметр) | 1925*795*1150(Дизель) 1840*795*995(Электродвигатель) |
1450*745*970 | 1000*995*650 | 1905*1100*1200 | 1350*820*1040 | 1500*890*1230 | 2000*1030*1400 | ||
| Вес(кг) | 630(Дизель) 560(Электродвигатель) |
430 | 760 | 720 | 540 | 1400 | 1500 | ||

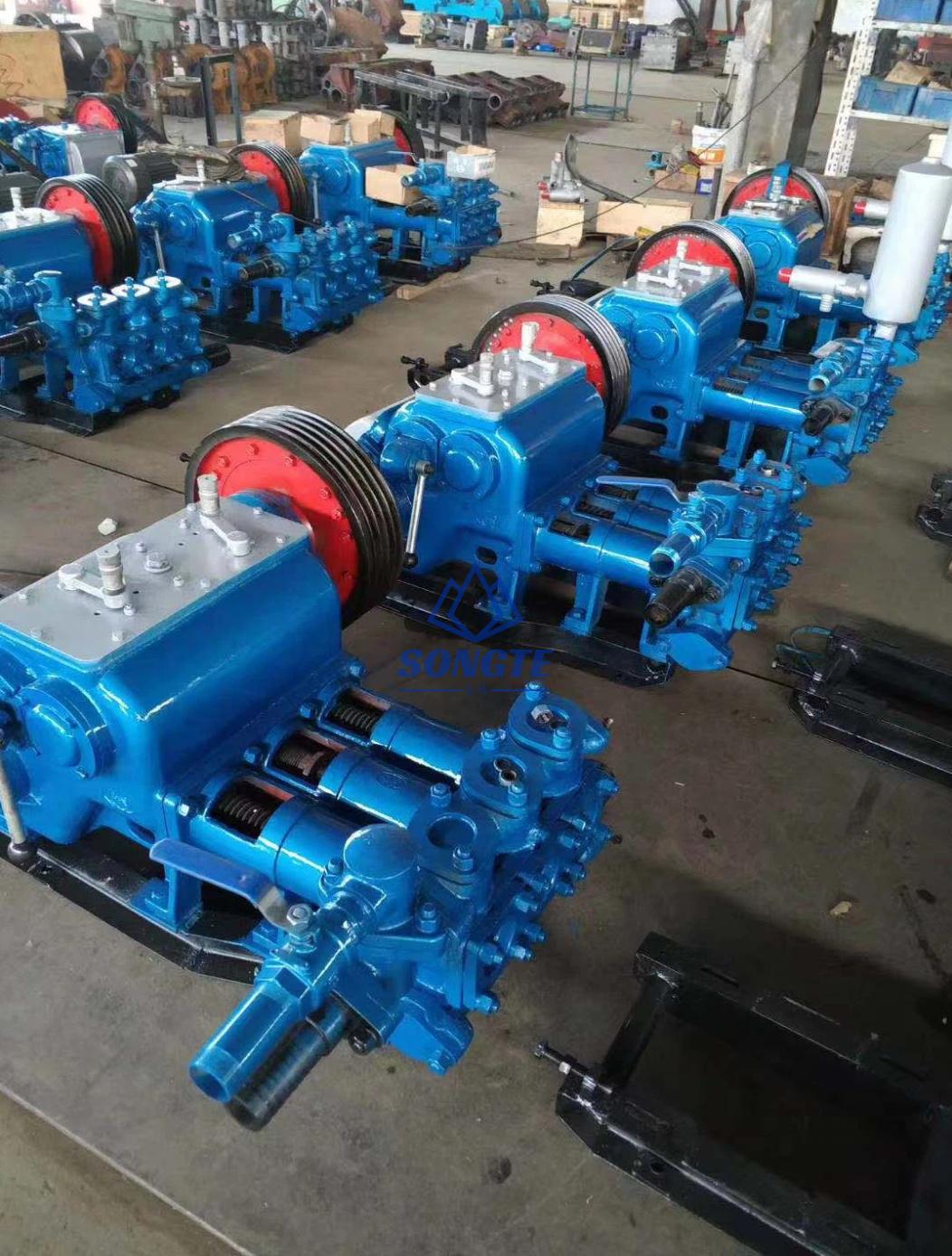

BW Series Mud Pump In Stock:
