Установка для бурения скважин на воду на тракторе 150 м / 200 м (SW-150WT SW-200WT)
Tractor Mounted Water Well Drilling Rig Features:
1. This drilling rig adopts advanced top drive technic, vibration technology, Full hydraulic controlling, saving 50% of energy compared to the same drilling machine.
2. No complicated mechanical operation handles, the drilling machine structure is compact, strong and durable, no need to disassemble when being transported.
3. It is fast at drilling speed, strong stability, high vertical precision of boreholes.
4. Power head uses the gear reducer combined of vabration, Высокий крутящий момент; when meeting with hard rock, can use the vibration function to improve the drilling speed, it is the ideal drilling equipment for users at home and abroad.
5. This machine is suitable for the soil, песок, rock, гравий, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.
Tractor Mounted Water Well Drilling Rig Technical Parameters:
Модель |
SW-150WT |
SW-200WT |
Глубина бурения |
150m |
200m |
Диаметр сверления |
130-219миллиметр |
130-219миллиметр |
Overall weight |
3500кг |
4200кг |
Измерение |
3400*1500*2200миллиметр |
3400*1500*2200миллиметр |
Feed stroke |
1500миллиметр |
1500миллиметр |
Traveling speed |
30км/ч |
30км/ч |
Способность к скалолазанию |
25° |
25° |
Min. Дорожный просвет |
250миллиметр |
250миллиметр |
Атмосферное давление |
1.45-2.5Мпа |
1.45-2.5Мпа |
consumption |
15-27м³/мин |
15-27м³/мин |
Main power |
35Л.С. |
40Л.С. |
Скорость вращения |
38-80оборотов в минуту |
38-80оборотов в минуту |
Крутящий момент вращения |
3500-4000Нм |
4000-5000Нм |
Заметка: Продукция компании продолжала совершенствоваться; Различные конструктивные и технические характеристики могут быть изменены в любое время, без какого-либо дополнительного уведомления или обязательств. |

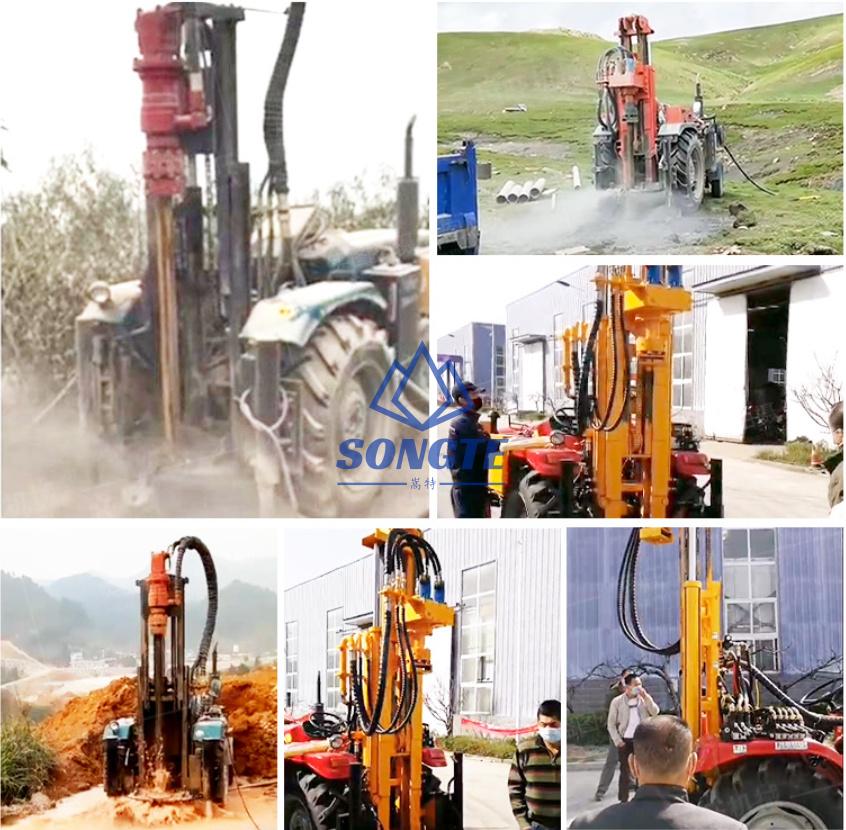

Tractor Mounted Water Well Drilling Rig Worksite:
