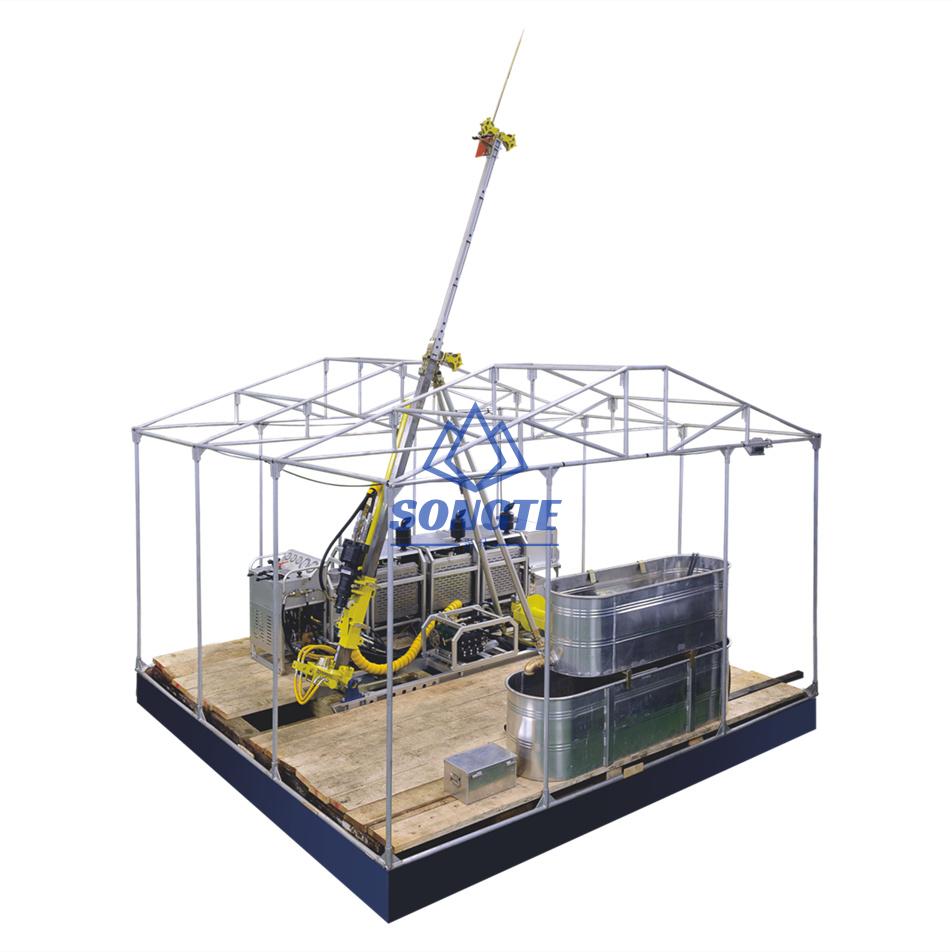

SC-600P Portable Full Hydraulic Core Drilling Machine 600m Wire-line Coring
Portable Type Hydraulic Core Drilling Rig Application:
SC-600P is with its high efficiency and easy assembling capability, it has been widely used in mineral exploration, infrastructure construction exploration (i.e. railway, road and bridge, etc.), hydraulic and hydro power project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous region, forest and plateau. It is the ideal drilling rig when operating in hard-to-access areas, conducting initial investigations and working on tight schedules.
This Portable Hydraulic Core Drilling Machine Key Characteristics: Easy to access, fast to assemble/disassemble, high efficiency.
Light-weight and portable
Modular design – The heaviest modular is 180kgs, can be carried be four persons.
Drill frame of mast type – Drilling from an angle of 45°to 90°, no tower is needed.
Light weight – 80% of the machine framework made of high-strength aluminum alloy materials.
Fast
Fast transportation – No need for road and infrastructure construction
Fast relocation – Only 2 hours required to be ready for the next hole.
Fast penetration – 3times higher than vertical rig with a max. daily penetration of 150
meters and an average daily penetration of 70 meters.
Reliable
All key parts are from the global leading brands, powerful, stable and reliable.
Integrated hydraulic system with no worries of leakage and malfunction.
Unique mud system and special mud materials to increase drilling efficiency and reduce accidents.

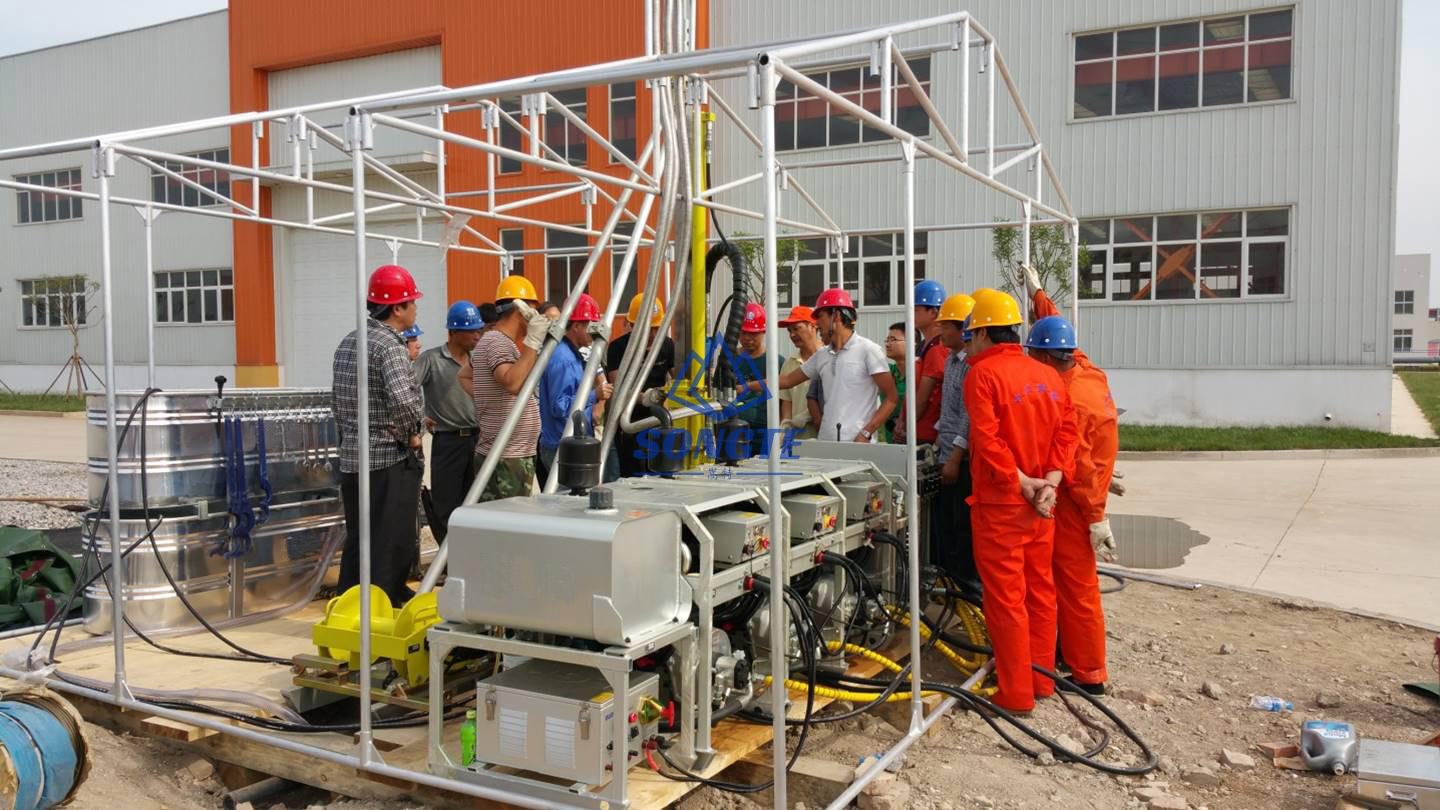

Wire-line Coring Drilling Rig Training at Site:
SC-600P Portable Hydraulic Core Drilling Rig Technical Parameters:
| Drilling depth capacity | HQ/NTW/BTW | 100/300/600m |
| Hole Diameter | Rod Length 1.5m | 96/75.7/60mm |
| Core Diameter | 63.5/56/42mm | |
| Power engine | KUBOTA D1105.T, 3×23.5KW/3000RPM | |
| Hydraulic system | American Parker valve,water cooler | |
| Max pressure 21Mpa, Max flow 160L/min | ||
| Top drive rotation head | Max torque | 650N.m |
| Max rotation speed | 1300rpm | |
| Feed travel | 1.83m | |
| Pull/Thrust | 50KN/30KN(Single cylinder) | |
| Winch | Average speed | 150m/min |
| Lift | 700kg | |
| Wire Diameter | 5mm | |
| Wire accommodation | 650m | |
| Mast | Height of the mast on 90 degree | 5m |
| Drilling angle | 45º-90º(standard ) | |
| Size and weight | Platform area/Module quantity | 4m×4m/12 piece |
| Gross/Maximum module | 1150kg/180kg |

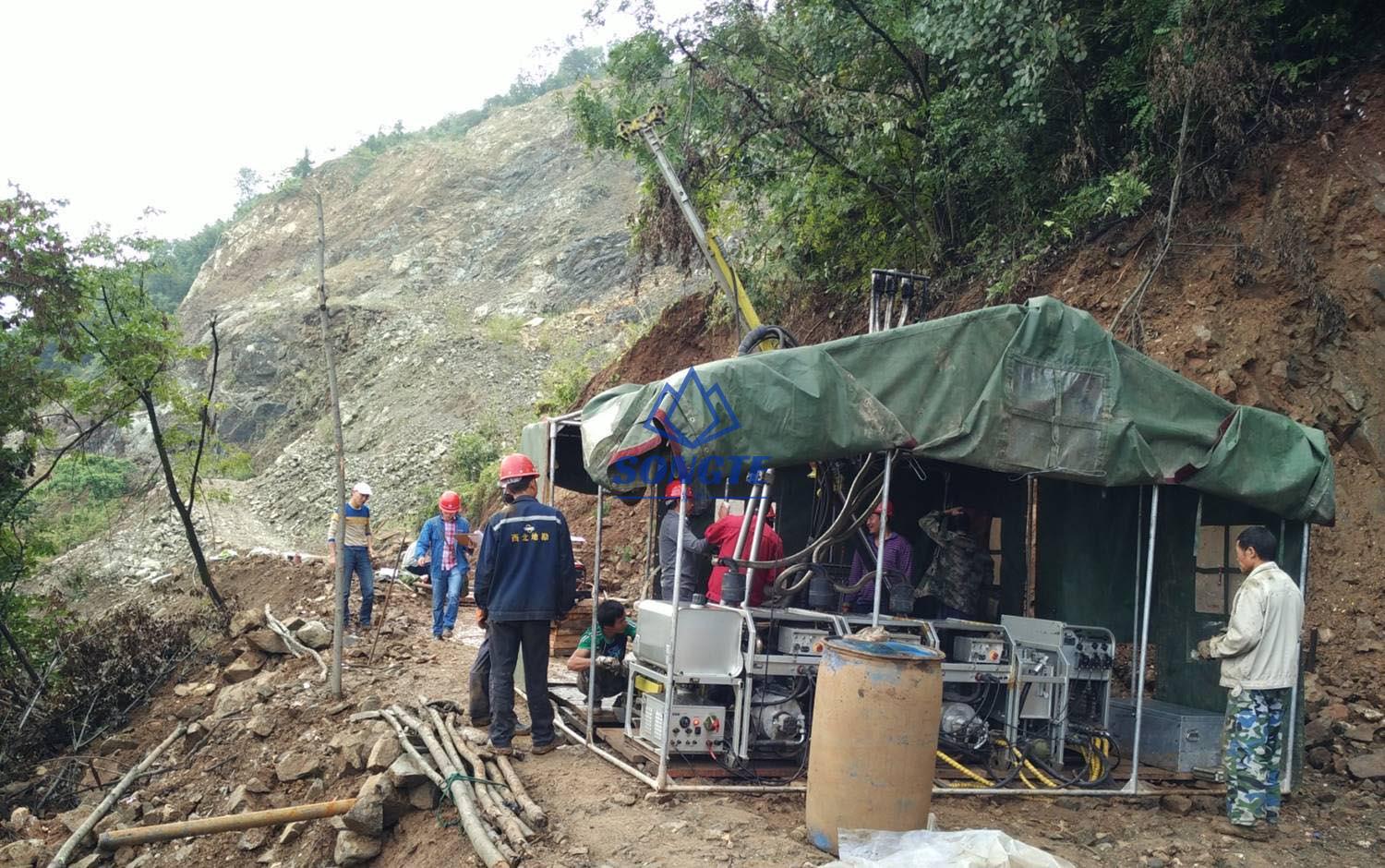

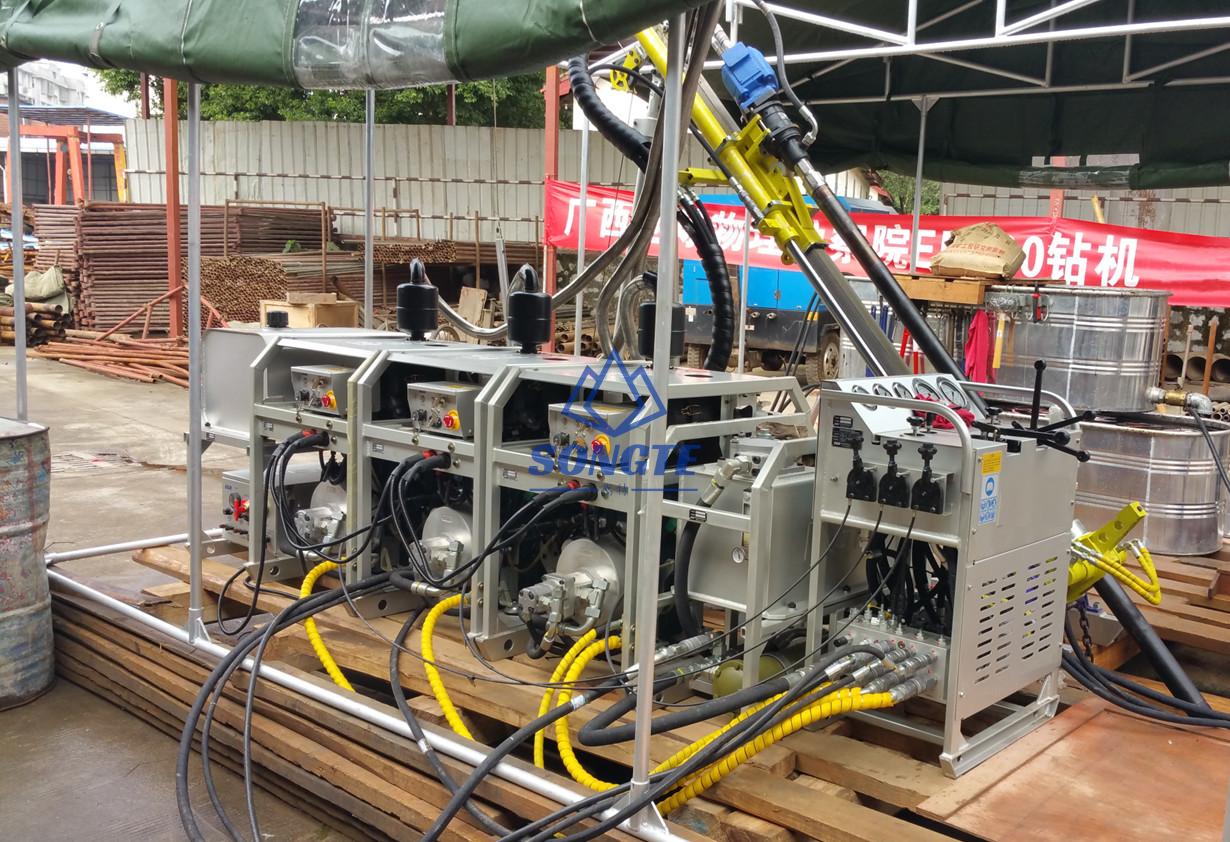

SC-600P Portable Type Hydraulic Core Drilling Rig Ready For Working:

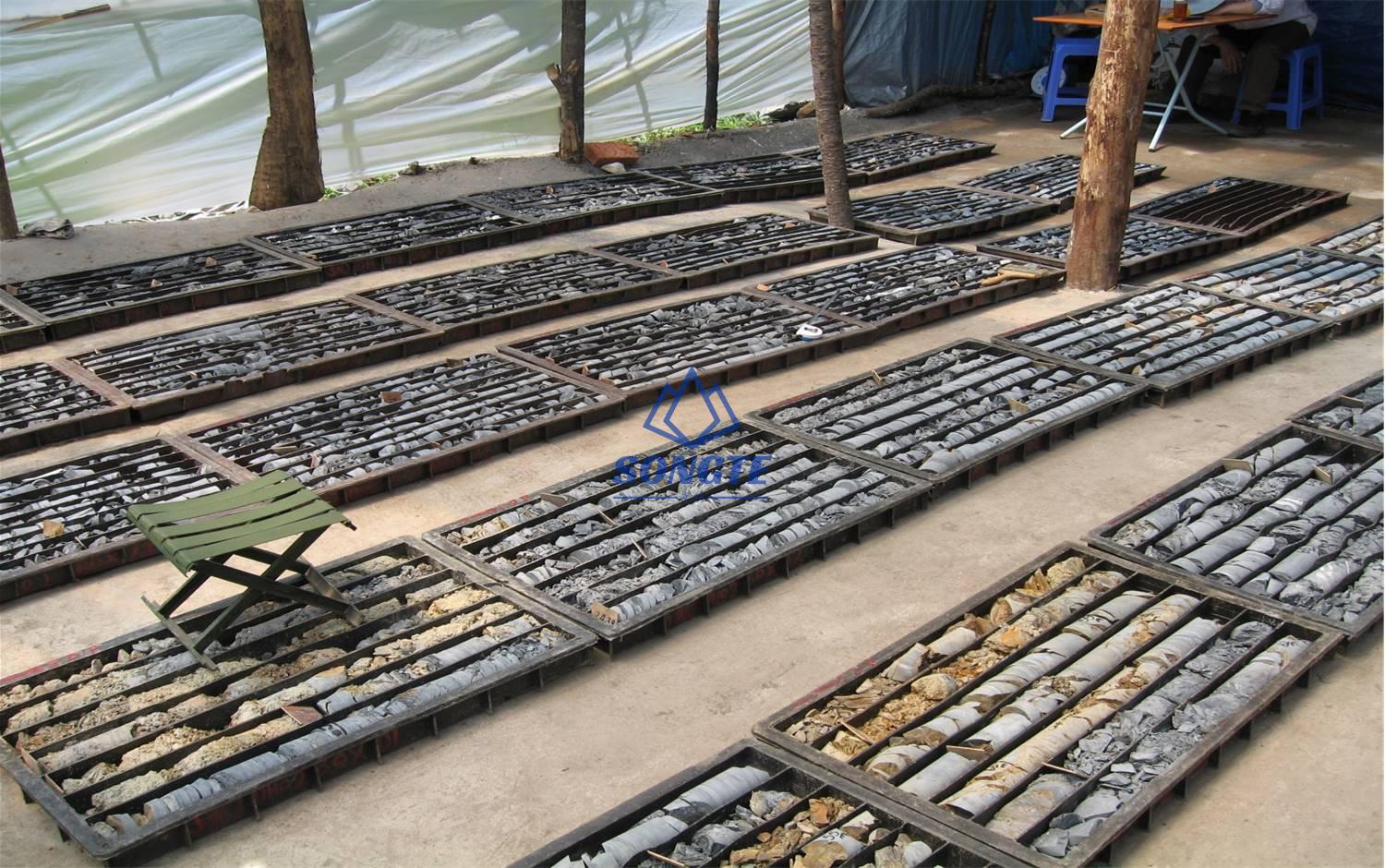

Core Samples Taking By Our Core Drilling Rigs:
