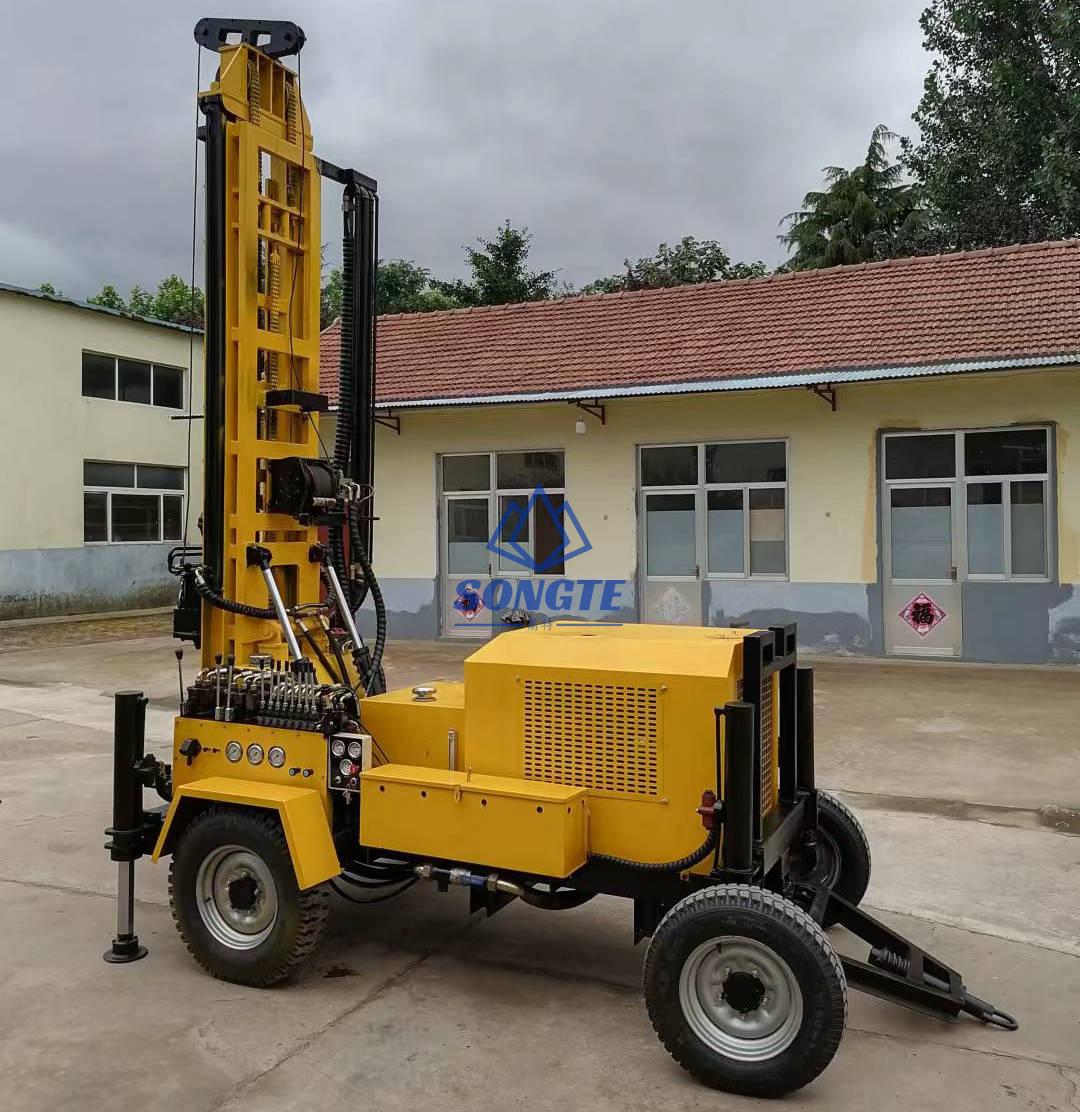

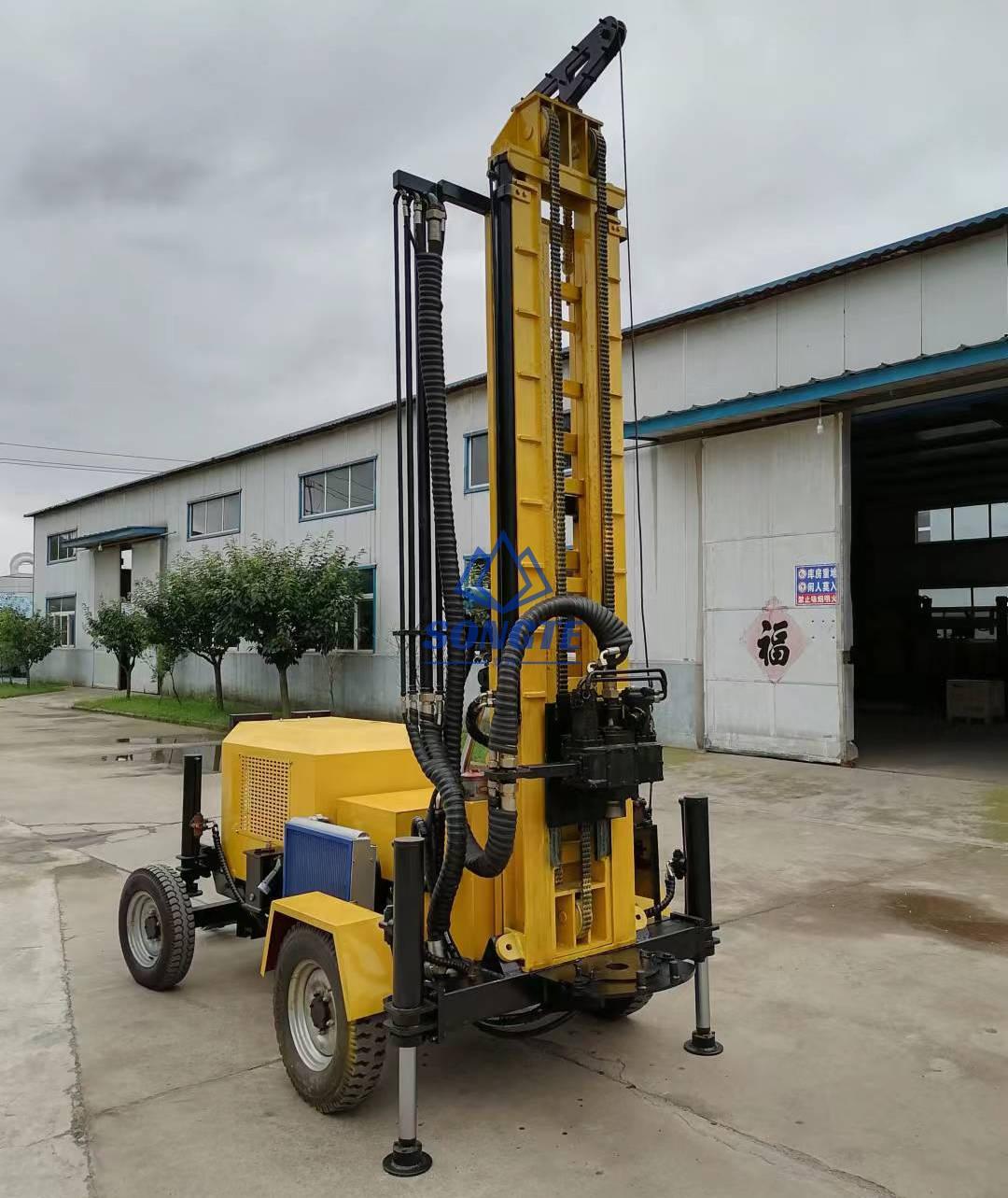

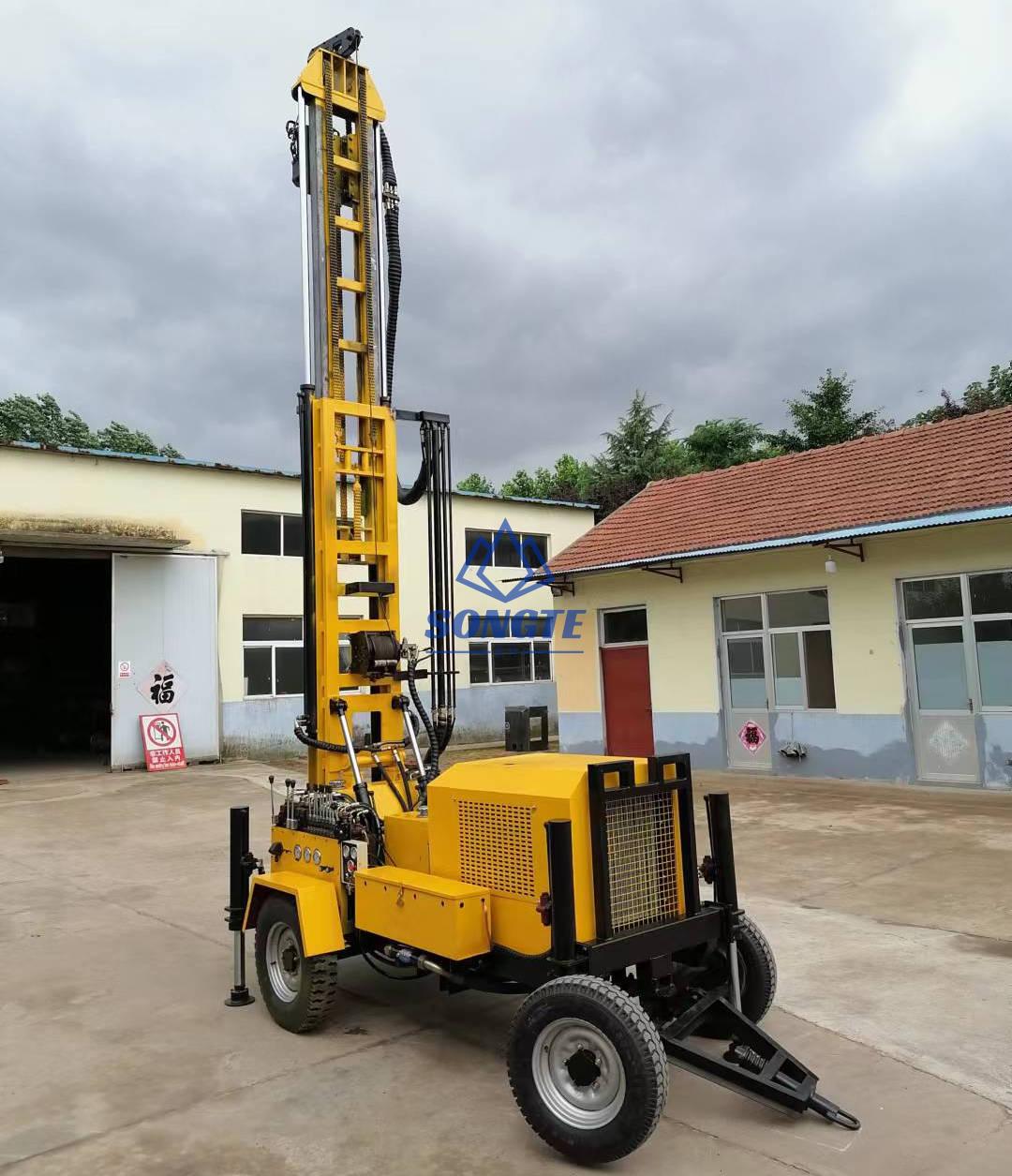

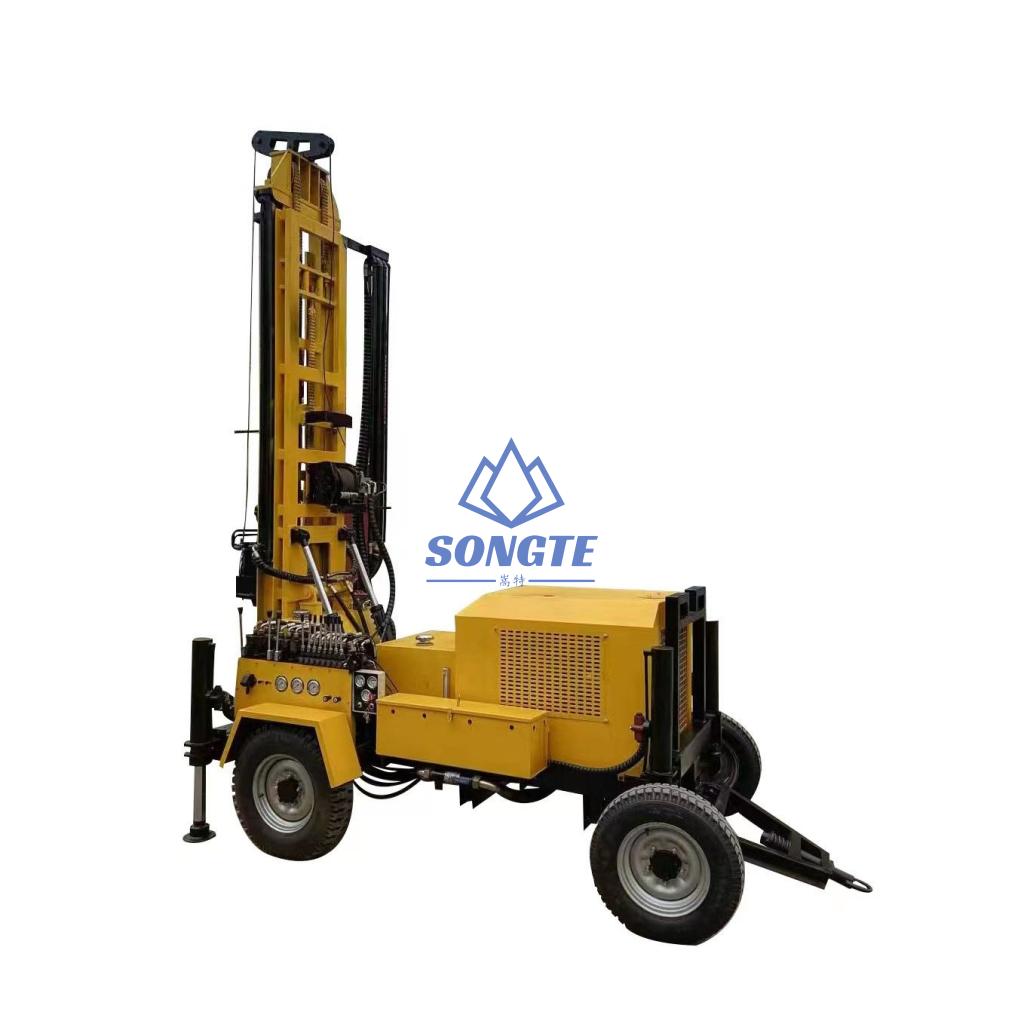

200m Trailer Mounted Water Borehole Drilling Rig Water Drill Rig (SW-200M)
Product Introduction
SW-200M trailer mounted water well drilling rig uses advanced hydraulic technology, top head driving, and it can work with both mud pump and air compressor. It is powerful, efficient, multi purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures.
Main Features
- This rig adopts hydraulic system, large torque, high drilling efficiency.
- the propulsion and lifting use hydraulic cylinders to drive the plate chain transmission, large power, strong torque, powerful drilling in soil, sand, hard rock and other complex geological conditions.
- equiped with 58KWdiesel engine, powerful for drilling, convenient for using in the place with no electricity.
- equiped BW200mud pump mounted on trailer chassis, very convenient for using and transportation, saving labour for carrying.
- the tower assembly has a hydraulic compensation mechanism, rise and down of the tower controled by hydraulic cylinder, large feed stroke, high drilling efficiency.
- equiped four hydraulic support legs, very stable when drilling.
- mounted on trailer chassis, very convenient for moving and transportation.
Application
This rig is widely used in drilling water wells, boreholes, farm irrigation, geothermal air-condition holes, agricultural irrigation wells, rural poverty relief wells, civil draft wells, ground source heat pump wells.
Technical data:
| Drilling depth(m) | 200m |
| Drilling diameter(mm) | 90—250mm |
| Working pressure(Mpa) | 1.5-2.5 |
| Air consumption(m³/min) | 15–30 |
| Diesel engine Power(KW) | 58 (78HP) / 2200rpm |
| Walking speed (km/h) | 0-20 |
| Ground clearance(mm) | 220 |
| Support cylinder stroke (mm) | 500 |
| Power head stroke (mm) | 3500 |
| System pressure (Mpa) | 20 |
| Feeding force (tonf) | 6.0 |
| Lifting force (tonf) | 10 |
| Rotary speed (rpm) | 40-95 |
| Rotary torque (N.m) | 3200 |
| Dimension(L * W * H)(mm) | 3500*1700*1850 |
| Total Weight(kg) | 3200 |
| Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
