Pile Drilling Rig: The Working Principle of Rotary Drilling Rig

The Working Principle of Rotary Pile Drilling Rig in Pile Foundation Construction

Abstract

Rotary pile drilling rig plays a critical role in modern construction, particularly in pile foundation projects such as cast-in-place piles. These rigs are versatile and efficient, capable of operating under various geological conditions. This article explores the working principle of rotary drilling rigs, detailing their components, operational mechanisms, and the types of pile foundation construction they support.

piling-machine-5

Pile Drilling Rig Introduction

Rotary drilling rigs are essential in the field of civil engineering, especially for pile foundation construction. They are widely used in municipal construction, highways, bridges, and high-rise buildings. This article aims to provide a comprehensive overview of the working principles behind these rigs, emphasizing their application in cast-in-place pile construction and other pile foundation methods.

Components of Rotary Pile Drilling Rig

Drilling Rig Structure

  1. Base Carrier: Typically a crawler or truck-mounted base that provides stability and mobility.
  2. Mast: A vertical structure supporting the drilling apparatus and aligning the drill string.
  3. Rotary Drive: A motorized unit that provides rotational force to the drill string and attached drilling tools.
  4. Kelly Bar: A telescopic steel pipe that transfers the rotational and vertical forces to the drill tool.
  5. Drill Tool: Various types are used depending on the ground conditions, including short augers, rotary buckets, and core barrels.

Auxiliary Systems

  1. Hydraulic System: Powers the movement and operation of the mast, rotary drive, and other components.
  2. Control System: Manages the operation of the rig, often with advanced electronic controls for precision.
  3. Cooling System: Ensures that the hydraulic fluids and other components do not overheat during operation.

Operational Mechanism

Piling Rig Drilling Process

  1. Setup and Alignment: The rig is positioned at the drilling site, and the mast is aligned vertically.
  2. Tool Selection: Depending on the soil or rock conditions, an appropriate drilling tool is chosen.
  3. Drilling Operations: The rotary drive rotates the Kelly bar and the attached drill tool. The tool cuts into the soil or rock, creating a borehole.
    • Dry Drilling: Short augers are used for cohesive soils.
    • Wet Drilling: Rotary buckets are employed in water-bearing or loose soils.
    • Rock Drilling: Core barrels are used to drill through hard rock layers.
  4. Spoil Removal: Cuttings are brought to the surface by the rotating action of the drill tool and are removed from the borehole.

Drilling Techniques

  1. Continuous Flight Auger (CFA): Used for creating deep foundation piles without the need to remove the auger until the pile is formed.
  2. Kelly Drilling: The Kelly bar is extended and retracted to achieve deeper drilling depths, typically used for larger diameter piles.

Concrete Placement

In cast-in-place pile construction, once the borehole is drilled to the desired depth, a reinforcing cage is placed, and concrete is poured directly into the borehole, forming a solid pile in situ.

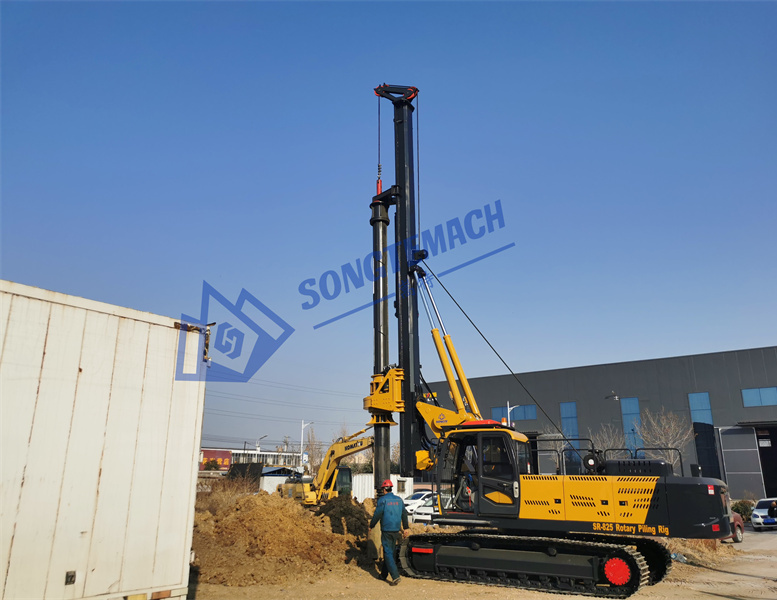

Hydraulic Rotary Piling Machine for Bored Piles 25m SR-825

Types of Pile Foundation Construction

Cast-in-Place Piles

  • Method: The borehole is drilled to the required depth, a steel reinforcement cage is inserted, and concrete is poured in place.
  • Advantages: Provides strong, load-bearing piles with excellent bonding to the surrounding soil.

Precast Piles

  • Method: Precast concrete piles are driven into the ground using the rotary drilling rig as an auxiliary tool.
  • Advantages: Reduces construction time and provides high-quality control over pile production.

Pile Drilling Rig Applications

Rotary drilling rigs are employed in various construction scenarios, including:

  • Urban Development: For high-rise buildings where deep foundation piles are essential.
  • Infrastructure Projects: Such as highways and bridges requiring stable foundations.
  • Waterfront Structures: Where piles need to be driven through soft soils and water-bearing layers.

Conclusion

Rotary pile drilling rig are indispensable tools in modern construction, providing the versatility and efficiency needed for various pile foundation projects. Understanding their working principles, components, and operational mechanisms is crucial for optimizing their use in different geological conditions. As technology advances, these rigs will continue to evolve, offering even greater precision and capability in foundation engineering.

References

  1. Tomlinson, M.J., & Woodward, J. (2015). Pile Design and Construction Practice. CRC Press.
  2. Cernica, J.N. (1994). Geotechnical Engineering: Foundation Design. John Wiley & Sons.
  3. Bowles, J.E. (1996). Foundation Analysis and Design. McGraw-Hill.
  4. Songte Rotary Drilling Rig’s Specifications and Operation Manual.
