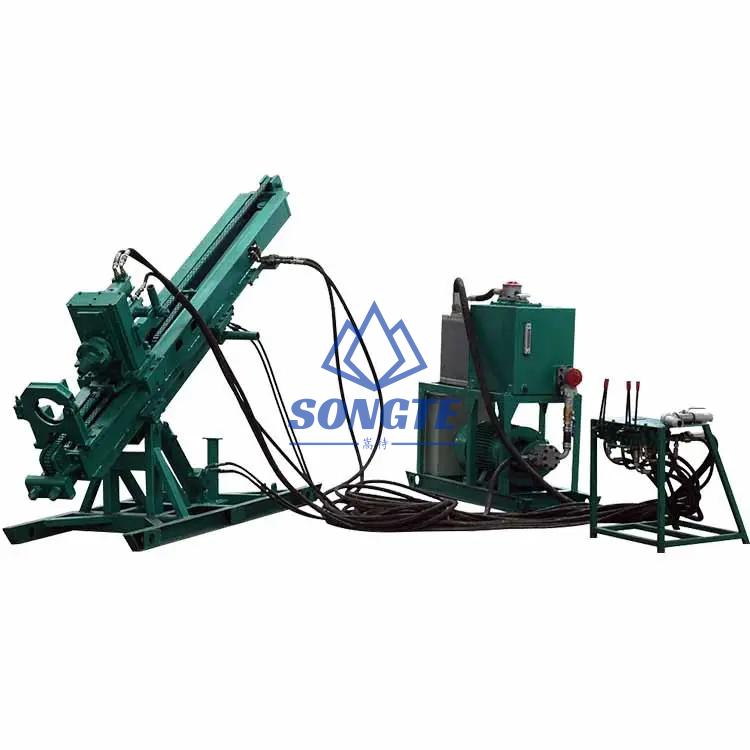

Portable Type Anchor Engineering Drilling Rig Application:
SA series anchor engineering drilling rig is a full hydraulic operated top drive drill head drill rig. It is applied for deep foundation anchor, heavy duty pretension anchor hole at side slope of water power station, railway or highway projects, as well as drainage holes and pipe roof hole for tunnel. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. De plus,, it can be applied to drill blasting holes in quarry, high-pressure jet grouting guiding hole and small water well hole.
Split Type Anchor Drilling Rig Features:
● It has great drilling capability, wide range of application, rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accidents.
● Extension mechanism in the output spindle of top drive power head protects drilling tools effectively. It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive power head and hole top plate toward the opposite direction.
● A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with working position.
● Rig structure is a separate group design, and assures good disassembility , rapid and convenient mount and transport, better working environment and lower labor strength as well as remote control and operation.
● Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and buckles), which makes it possible for greatly reducing rig weight and fastening transport.
● The imported hydraulic motor, other main assembly preferentially selected home made reputed and high quality products ensure its stable running performance, reliable product quality and long service life. It has good interchangeability due to the high grade of standardization and serialization of wearing parts. Full hydraulic drive and ensures, stepless shift, simple operate, convenient maintain and few wearing parts. It can be used with various drilling method such as carbide bit drilling, anger drilling, Perçage à percussion DTH, follow-up casing drilling etc.
SA Series Portable Split Type Anchoring Drilling Rig Technical Parameters:
| Modèle | SA-30 | SA-50 | SA-60 | SA-70 | SA-80 | SA-100 |
| Profondeur de forage(m) | 30 | 50 | 60 | 70 | 80 | 100 |
| Diamètre du trou de forage(mm) | 80~150 | 100~165 | 110~180 | 110~200 | 130~220 | 130~250 |
| Recommend drill rod (mm) | Φ50×1500Φ73×1500 | Φ73×1500 Φ89×1500 | Φ89×1500 Φ114×1500 | |||
| Angle de perçage(°) | 0~120° | |||||
| Power head rotary speed (r/min) | 24~114 | 5~120 | 5~130 | 5~98 | 5~180 | 5~90 |
| Coup d’alimentation(mm) | 1800 | |||||
| Max. Force de levage(KN) | 30 | 45 | 55 | |||
| Max. Thrust force(KN) | 15 | 30 | 40 | |||
| Max. Output torque (Nm) | 1500 | 2000 | 2500 | 3500 | 6000 | |
| Electric motor power (kW) | 15 | 18.5 | 22 | 30 | 37 | |
| Poids (Kg) | 950 | 1150 | 1350 | 1400 | 1700 | 2500 |
| Unit max weight (Kg) | 200 | 250 | 300 | |||
| Dimension (mm) | 2700x1150x1400 | 3300x1000x1500 | 3400x1000x1500 | 3450x1200x1500 | ||

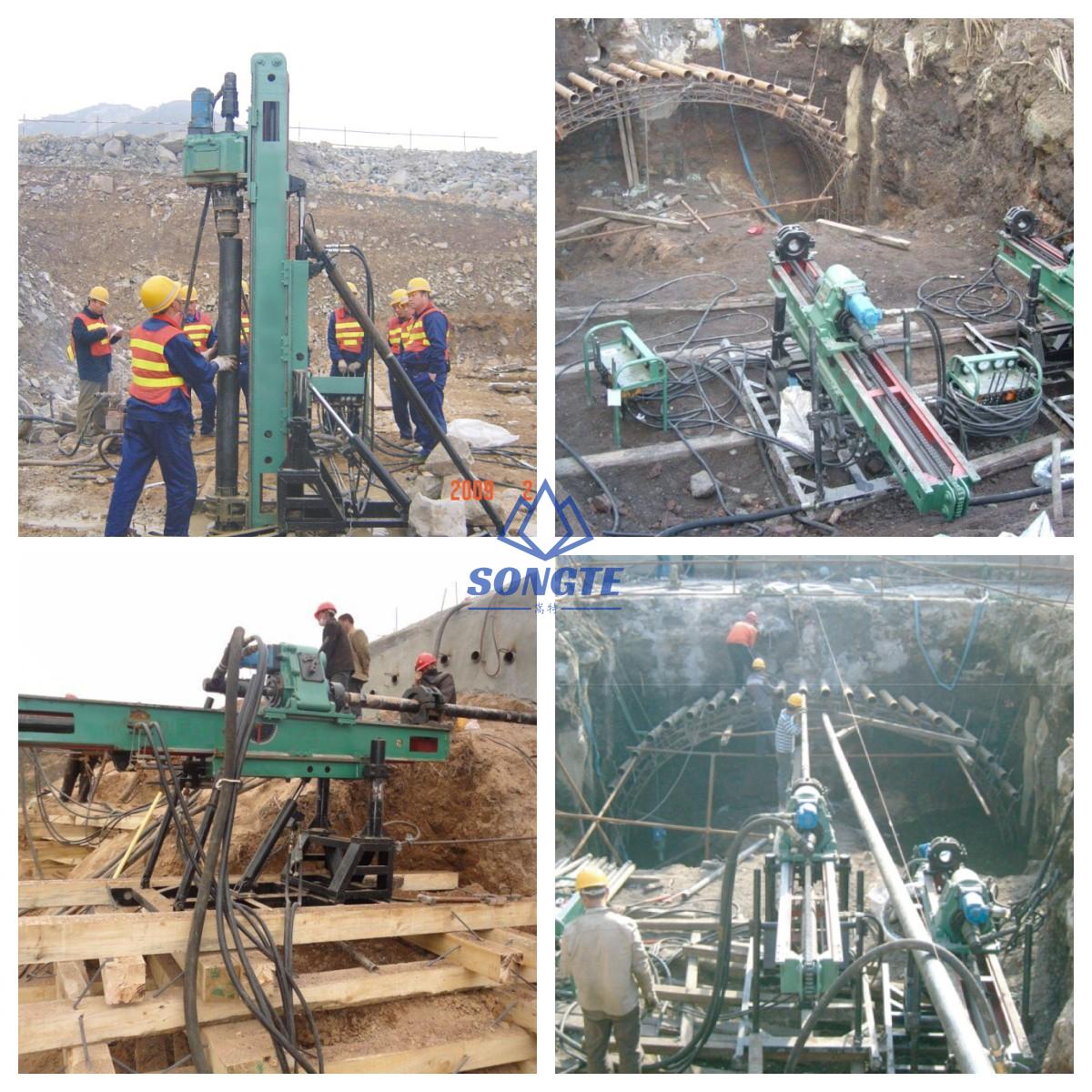

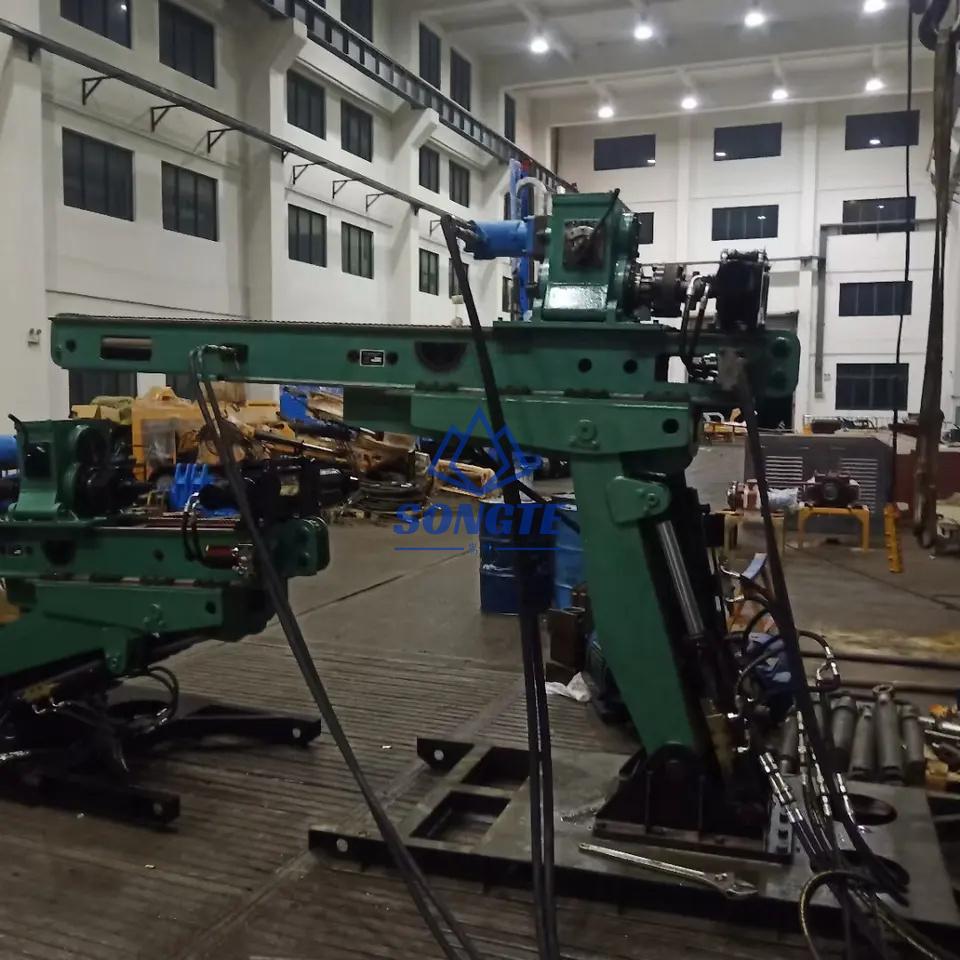

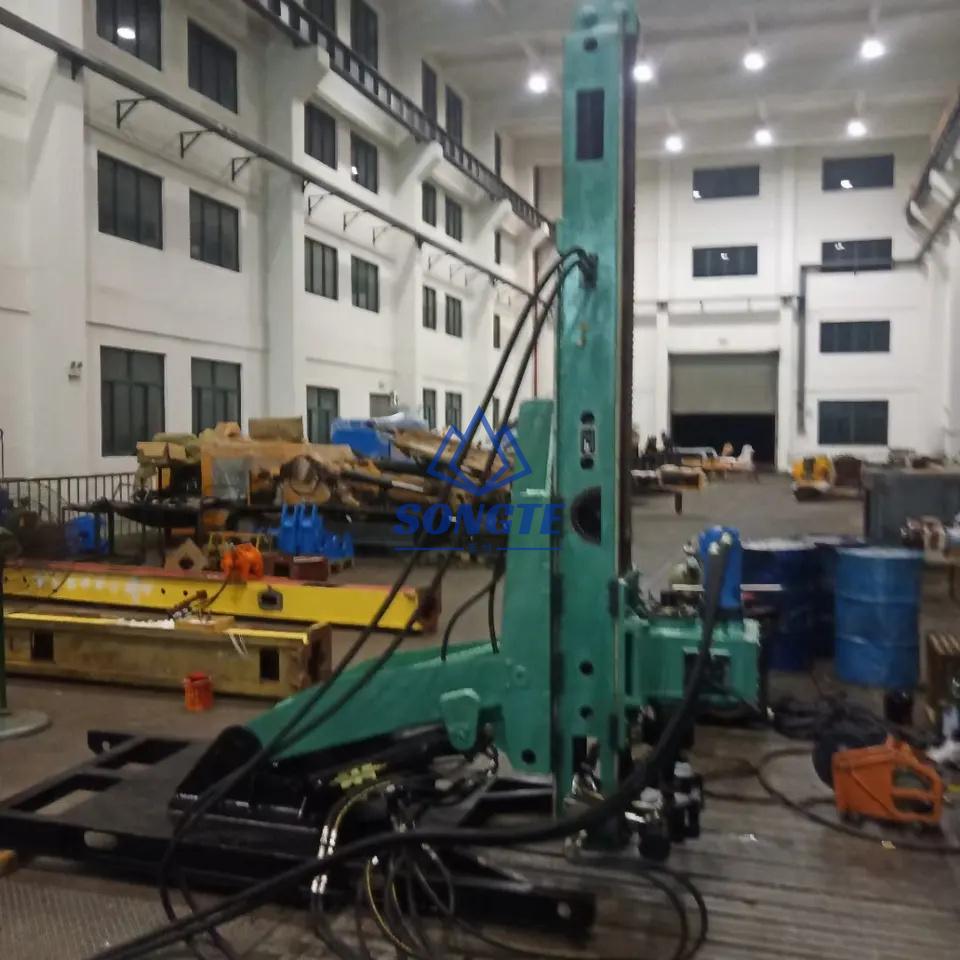

Split Type Anchoring Drilling Rig Geotechnical Engineering Working Site:

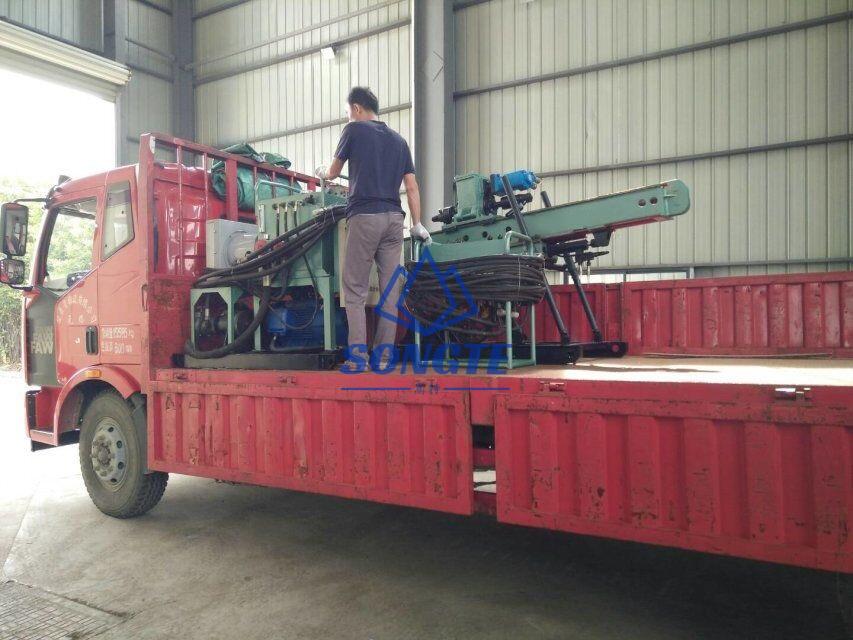

Portable Anchoring Drilling Rig Delivery:
