SDA-46 Changement automatique de tige Plate-forme de forage DTH intégrée Compresseur d’air intégré

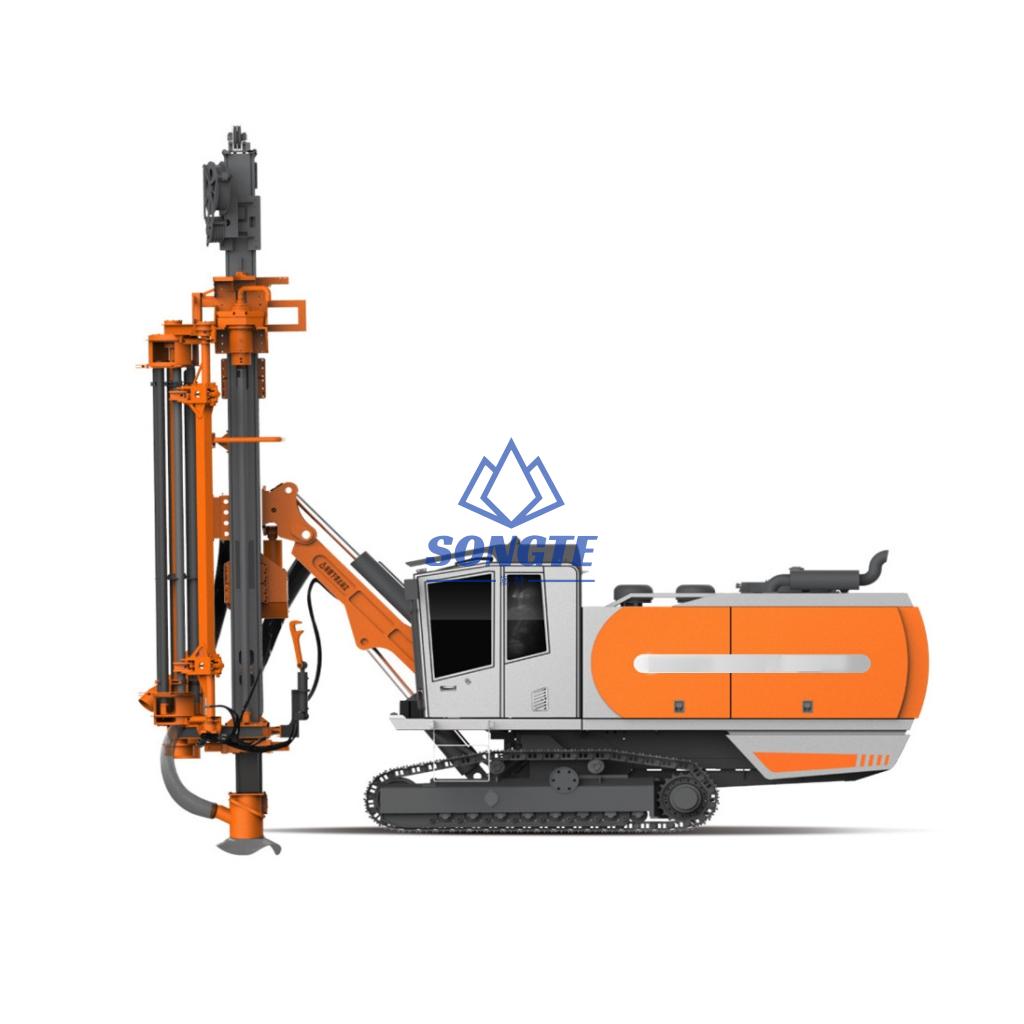

Automatic Integrated DTH Hammer Drilling Rig Features:
1. High performance & Powerful diesel engine and screw compressor for fast penetration rate.
2. Heavy duty feed beam feed system with cylinder, steel wire rope, pulleys and hose reel; the rotation system driven by double hydraulic motors; the carousel with 5 m @ dia 102 mm x 6 drill pipe storage; the auto rod / pipe handling system with cylinder positioning, rod / pipe removal & dual mechanical grippers; the dust collecting system, movable dust hood, drill rod / pipe thread auto lubrication, & hammer assistant removal system to fulfill fast drilling.
3. Reinforced tramming motor and chassis oscillation for maximum 3 km / h tramming, 25 degree climbing capability & haut / low speed dual speed tramming in variety of terrains. Independent diesel engine preheating for various ambient temperatures.
4. Flexible control handles / levers in air-conditioned cab. Display and instrument panel for monitoring operational parameters. Automatic alarm / warning system and electronic indicators for precise positioning and better hole quality.
5. Powerful 2-stage dust collector equipped with 5 ou 6 inch hammers for different applications.
6. The double hydraulic motors driven rotation unit for powerful and smooth torque output with stepless speed regulation.
Automatic Integrated DTH Borehole Drilling Rig Application:
SDA- 46 Automatic integrated DTH drilling rig (Foreuse fond de trou) is widely used in mining, construction, Carrières, et activités d’exploration. L’application principale des appareils de forage DTH est le forage de trous dans des formations rocheuses dures telles que le forage de trous de mine, Perçage de trous pour fondations, Ancres, et les études géotechniques dans les projets de construction, forage de puits géothermiques profonds, etc.
Automatic Rod Change Integrated DTH Drilling Rig Built-in Air Compressor Technical Parameters:
| Moteur diesel | |||
| Modèle | C11 | Vitesse | 1,800 Tr / min |
| Manufacturer | Caterpillar | Capacité du réservoir de carburant | 600 L |
| Puissance nominale | 287 kW | ||
| Screw Compressor | |||
| Air End Manufacturer | Ingersoll- Rand | F.A.D | 20 m3 / Min |
| Working Pressure Max. | 24 bar | ||
| Functional Parameters | |||
| Hole Range | 138 – 165mm | Hammer | 5 ou 6 pouce |
| Profondeur du trou | 35m | Vitesse de rotation | 0 – 105 Tr / min |
| Rod Diameter | 102 mm | Couple | 4,310 Nm |
| Rod / Pipe Handling | 6 + 1 | Longueur de la tige | 5 m |
| Boom & Poutre d’alimentation | |||
| Type de flèche | Single Straight Boom | Type d’alimentation | Cylinder Wire Rope |
| Feed Length | 9,100 mm | Travel Length | 5,600 mm |
| Extension d’alimentation | 1,300 mm | Vitesse d’avance ( Max. ) | 0.88 m / s |
| Force d’avance ( Max. ) | 34.5 KN | Lifting Force ( Max. ) | 67.6 KN |
| Châssis | |||
| Vitesse de déplacement | High: 3 km / h Low: 2 km / h | Traction Force | 117.7 KN |
| Capacité d’escalade ( Max. ) | 25° | Track Oscillation | ± 10° |
| Garde au sol | 420 mm | ||
| Poids & Taille | |||
| Largeur | 2,500 mm | Hauteur | 3,530 mm |
| Longueur | 11,280 mm | Poids ( w / o options ) | 23,000 Kg |

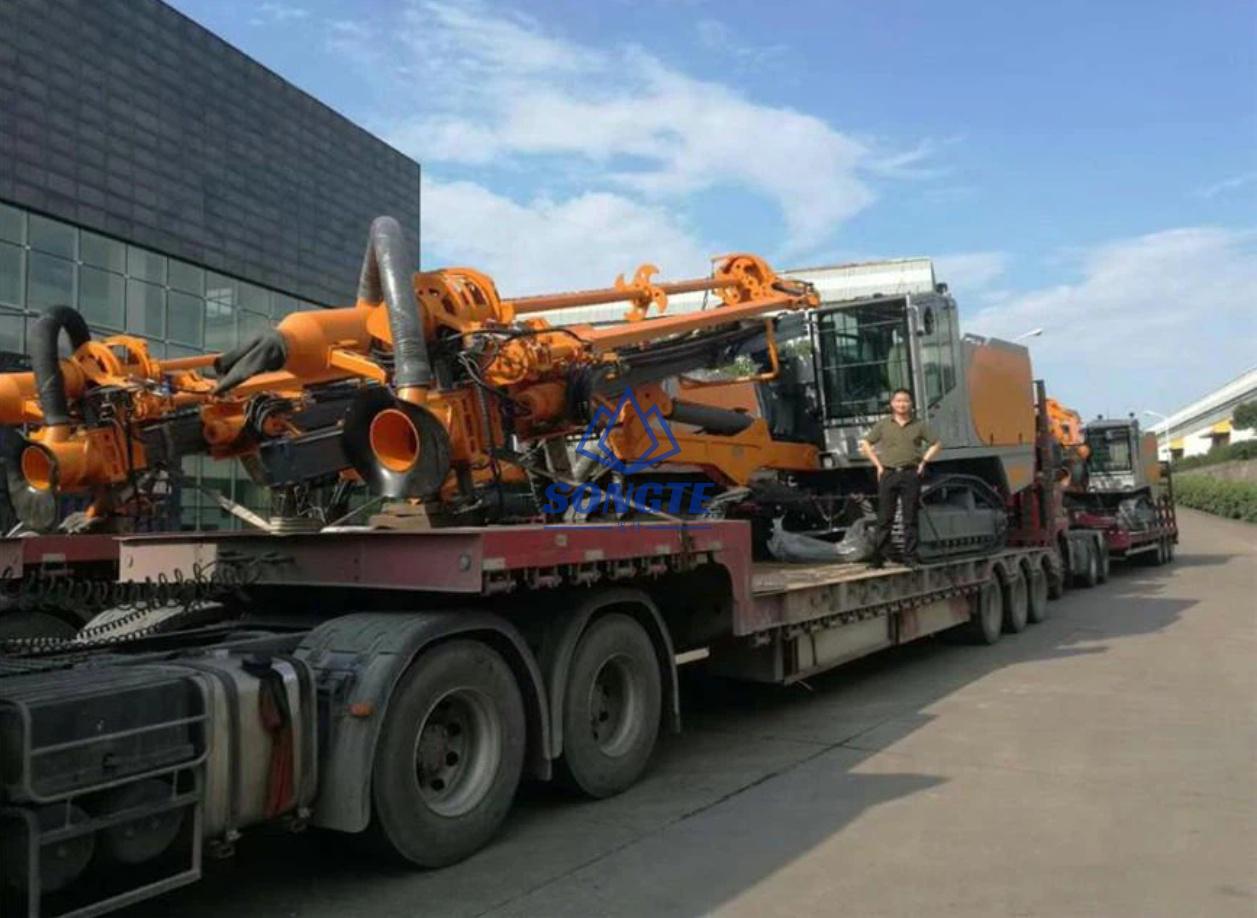

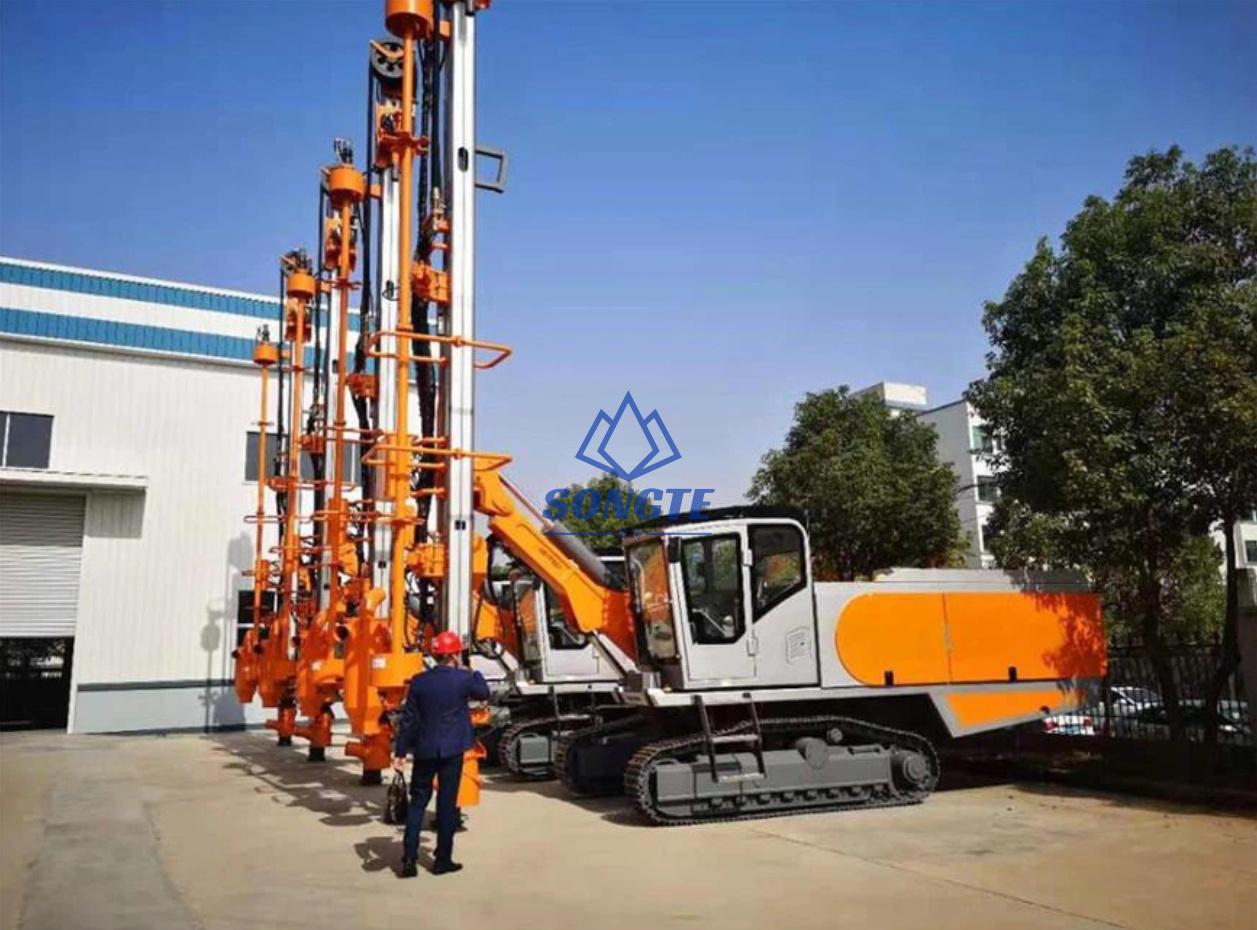

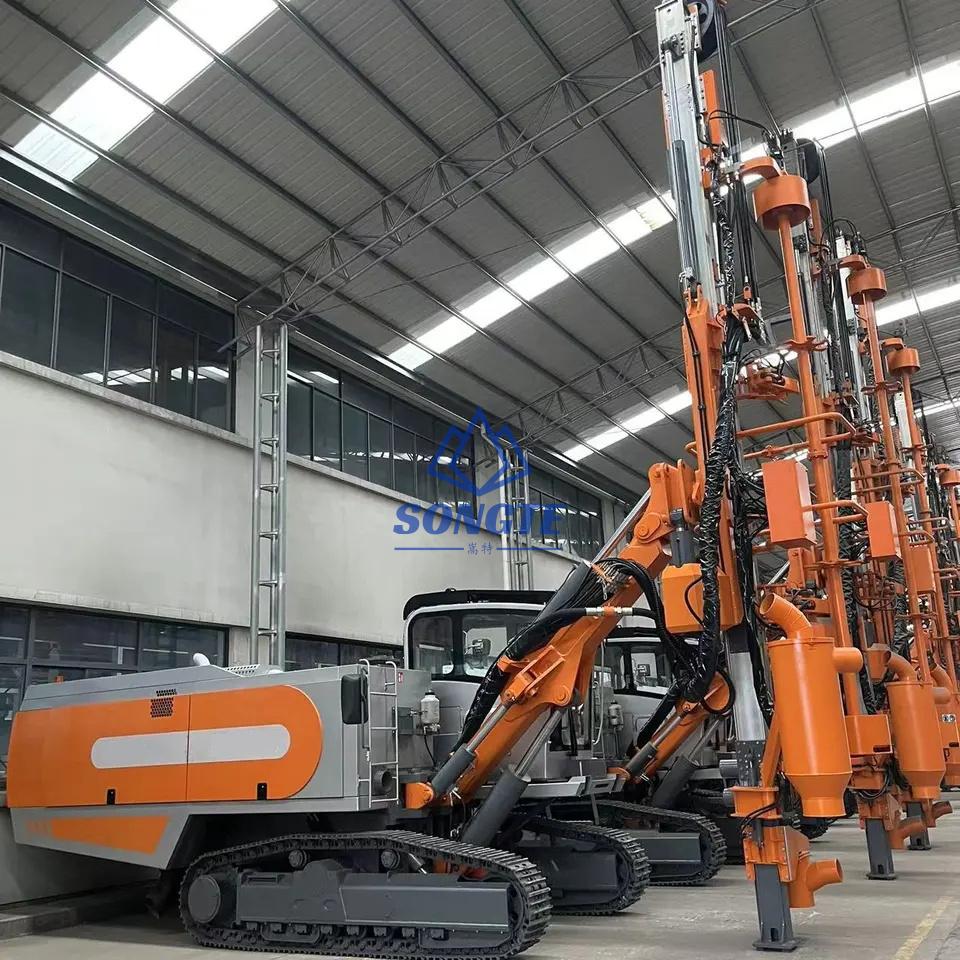

Automatic Integrated DTH Drilling Rig Batch Delivery:
