Machine de pulvérisation de mortier Pulvérisateur de mortier
Mortar Spraying Machine Mortar Sprayer Main features:
- High pressure air pump, uniform spraying, strong adhesion.
- Using a screw jet pump, it has sufficient power, long transmission distance, and powerful jet grouting.
- Independent electric box, one button start, protecting electrical appliances, durable and trouble-free.
- Equipped with solid tires, wet skid resistant, thickened wear resistant, and more convenient to move.
- Explosion-proof steel wire high-pressure pipe, avec une longue durée de vie, can withstand high-power spraying.
Mortar Spraying Machine Mortar Sprayer Technical Parameters:
| Modèle | 311 mortar sprayer | 511 mortar sprayer | 711 mortar sprayer |
| Voltage | 380V/220V | 380V/220V | 380V |
| Conveying pipe | 32# | 32# | 38# |
| Puissance du moteur électrique | 4KW | 7.5KW | 9KW |
| Pression de service | 3-6Mpa | 5-8Mpa | 7-8Mpa |
| Spraying area | 130㎡/h | 200㎡/h | 260㎡/h |
| Eau:cement:sable | 1:1:3 | 1:1:3 | 1:1:3 |
| Hopper capacity | 50L | 100L | 130L |
| Max. Feeding size | 6mm | 7mm | 7mm |
| Poids | 150Kg | 300Kg | 360Kg |
| Dimension | 1600x700x1000mm | 1600x600x1100mm | 1600x650x1100mm |

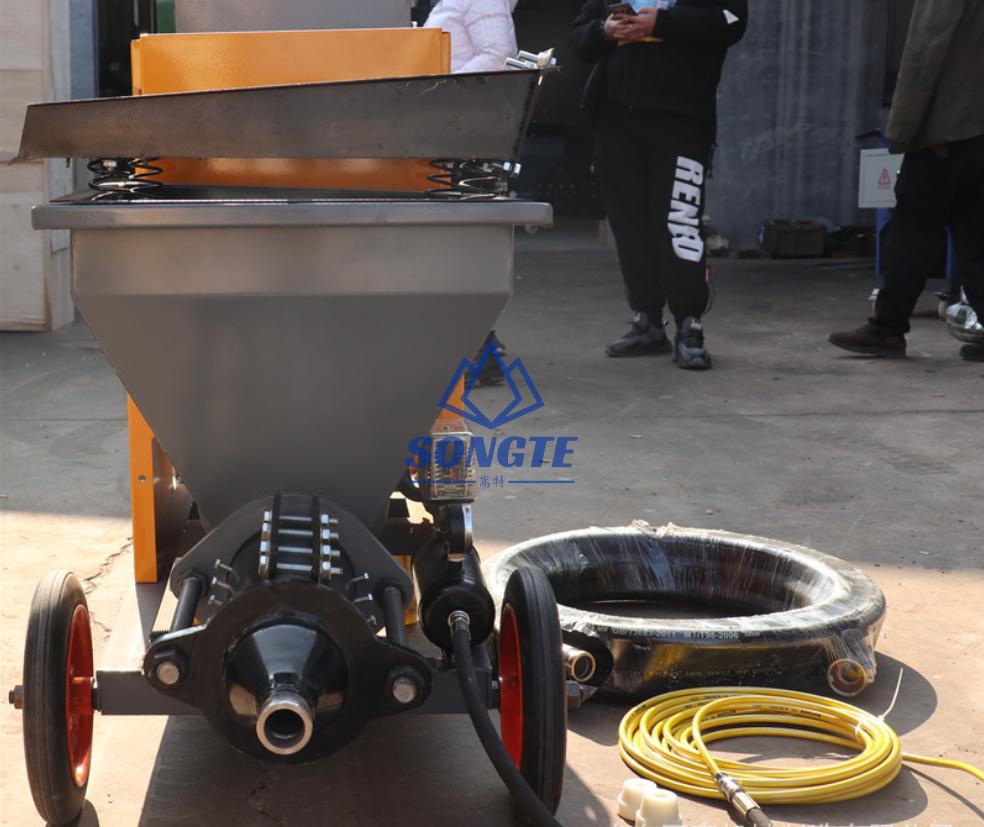

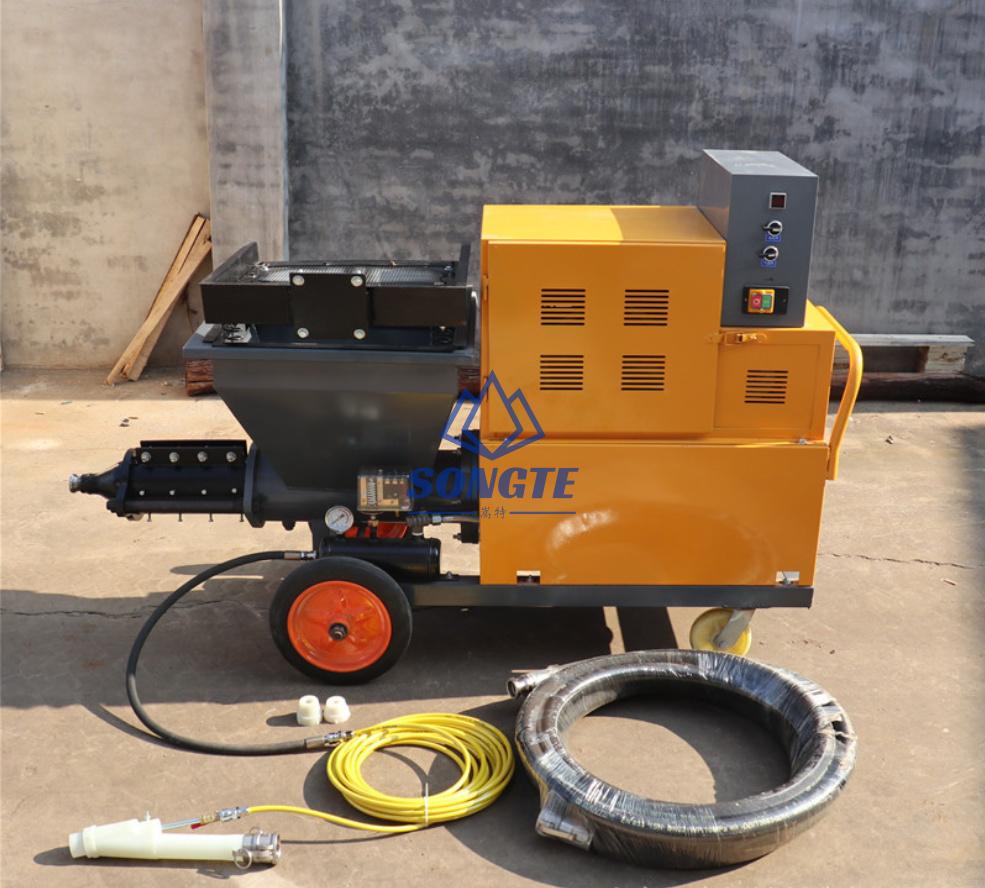

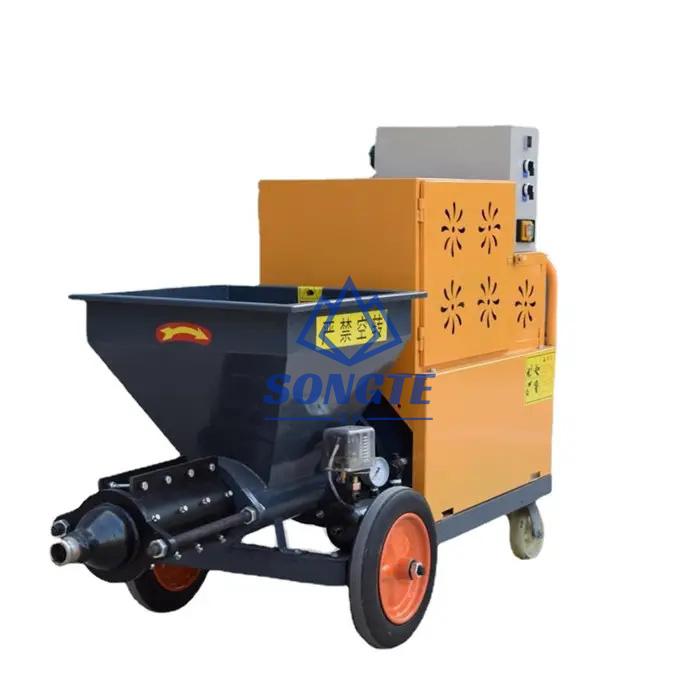

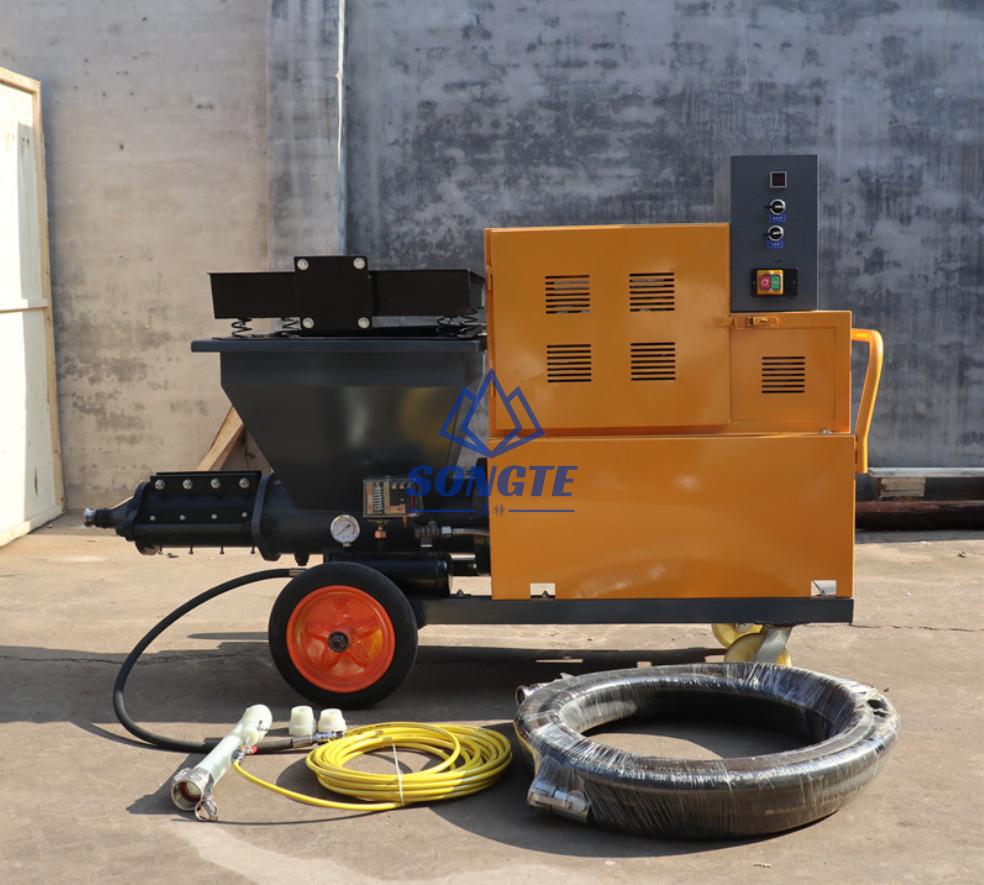

Mortar Spraying Machine Mortar Sprayer More Pictures:
