SCF-5 Plate-forme de forage d’exploration de géologie hydraulique complète 1500m
Full Hydraulic Geology Exploration Drilling Rig Instruction:
The SCF-5 Full Hydraulic Core Drill Rig is developed with advanced technique of same kind equipments at home and abroad. The drill rig has a reasonable design and superior performance. It is easy for operation and maintenance.
SCF-5 Full Hydraulic Geology Exploration Core Drilling Rig Overall Unit Features:

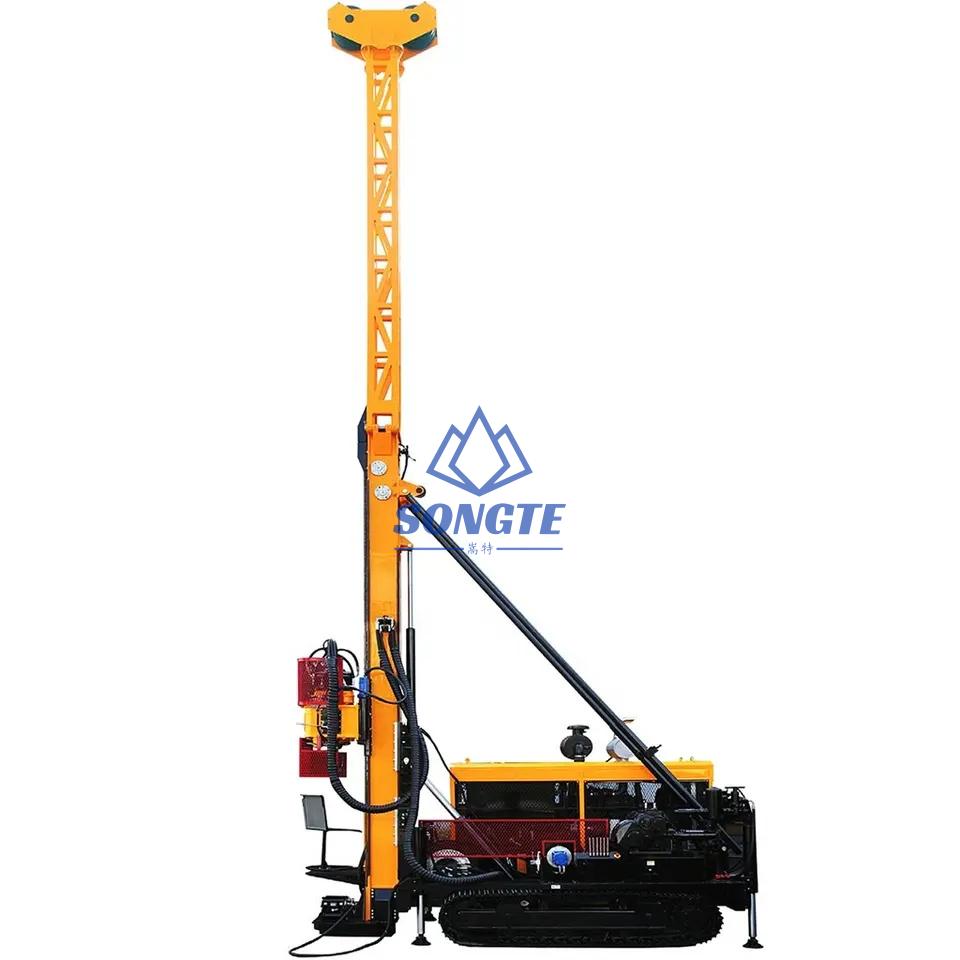

The drill rig adopts full hydraulic driving, tire trail-type. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The system has the function. If the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 À 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The SCF-5 looks pretty in overall structure and embodies the design thought of people oriented.
1) Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine,
the hydraulic pump, the main valves, the motors, crawler reducers and the key hydraulic spare parts are all adopted famous brands products at home and abroad.
2) Haute efficacité
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 Mètres (19.7 pieds) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
3) Environmental Protection
With lower polluting emission of diesel engine, professional noise reducing design, the drill rig is fully suitable for urban operation and performance.
4) Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level.
Crawler Type Full Hydraulic Geology Exploration Drilling Rig Application:
SCF-5 Core Drill Rig is mainly used for inclined and straight holes drilling. Il pourrait être utilisé pour l’exploration et la prospection de la géologie, métallurgie, charbon, Industrie nucléaire, hydrology and in other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
SCF-5 Hydraulic Geology Exploration Core Drilling Rig Technical Parameters:
| Moteur diesel | Modèle | Cummins 6CT A8.3-C195 (Turbocompressé et refroidi à l’eau de suralimentation) |
| Déplacement | 8.3L (2.19 US Gallons) | |
| Pouvoir | 145kW (195CV) | |
| Régime nominal(Réglage d’usine) | 2200Tr / min | |
| Capacité de forage | BQ | 1500 m(4920 pieds) |
| NQ | 1300 m(4264 pieds) | |
| QG | 1000 m(3280 pieds) | |
| PQ | 680 m(2230 pieds) | |
| Tête de perçage | Rotation Motor | Double Hydraulic Motors –variable and Reversible Maker: SAUER-DANFOSS |
| Tr / min | Two Shifts/ Step less Change 0-1145 Tr / min | |
| Ratios | 1st 8.776:1 2Nd 2.716:1 | |
| Head Opener | Side wise sliding way with hydraulic drive | |
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally Closed Type Axial Holding Capacity of 222 400 N | |
| Max. Couple | 4750 N·m (3427 lbf·ft) | |
| Hold Diameter | 121 mm(4.76 pouce) | |
| Max. Capacité de levage de la broche | 150 Kn(33720 lbf) | |
| Max. Puissance d’alimentation | 75 Kn(16860 lbf) |
| Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Pompe à boue & Line Winch. | Maker: DANFOSS 1st Pump：150LPM at 28.5MPa 2nd Pump：120LPM at 25MPa 3rd Pump： 102 LPM at 25MPa |
| Hydraulic Tank | Capacité | 420 L (111 US Gallons) |
| Capacité du palan principal | Hoisting Speed (fil unique) | 38-70m/min(tambour nu) |
| Force de levage (fil unique) | 77Kn(17310 lbf) | |
| Diamètre du fil d’acier | 18 mm(0.71 pouce) | |
| Longueur du fil d’acier | 50 m(164 pieds) | |
| Capacity of Wire line Hoist | Hoisting Speed (fil unique) | 164m/min (tambour nu) |
| Force de levage (fil unique) | 12 Kn(2698 lbf) (tambour nu) | |
| Diamètre du fil d’acier | 6 mm(0.24 pouce) | |
| Longueur du fil d’acier | 1500 m(4920 pieds) | |
| Mât | Mast Height | 11 m(36 pieds) |
| Angle de réglage du mât | 0°—90° | |
| Angle de perçage | 45°—90° | |
| AVC d’alimentation | 3800 mm(150 pouce) | |
| Course de glissement | 1500 mm(59 pouce) | |
| Feed Pull | 15000Kg(33075 Lb) | |
| Feed Thrust | 7500Kg(16538 Lb) | |
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
| Pompe à boue | Type | Pompe alternative Triplex Plunger |
| Modèle | BW250 | |
| Caresser | 100mm(3.9 pouce) | |
| Volume de sortie | 250,145, 90, 52 L/min (66, 38, 24, 14 Gallons US/min) | |
| Pression de refoulement | 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 Psi) | |
| Pince à pied | Portée de serrage | 55.5-117.5 mm(2.19-4.63 pouce) trou traversant Ф154mm(6.06 pouce) |

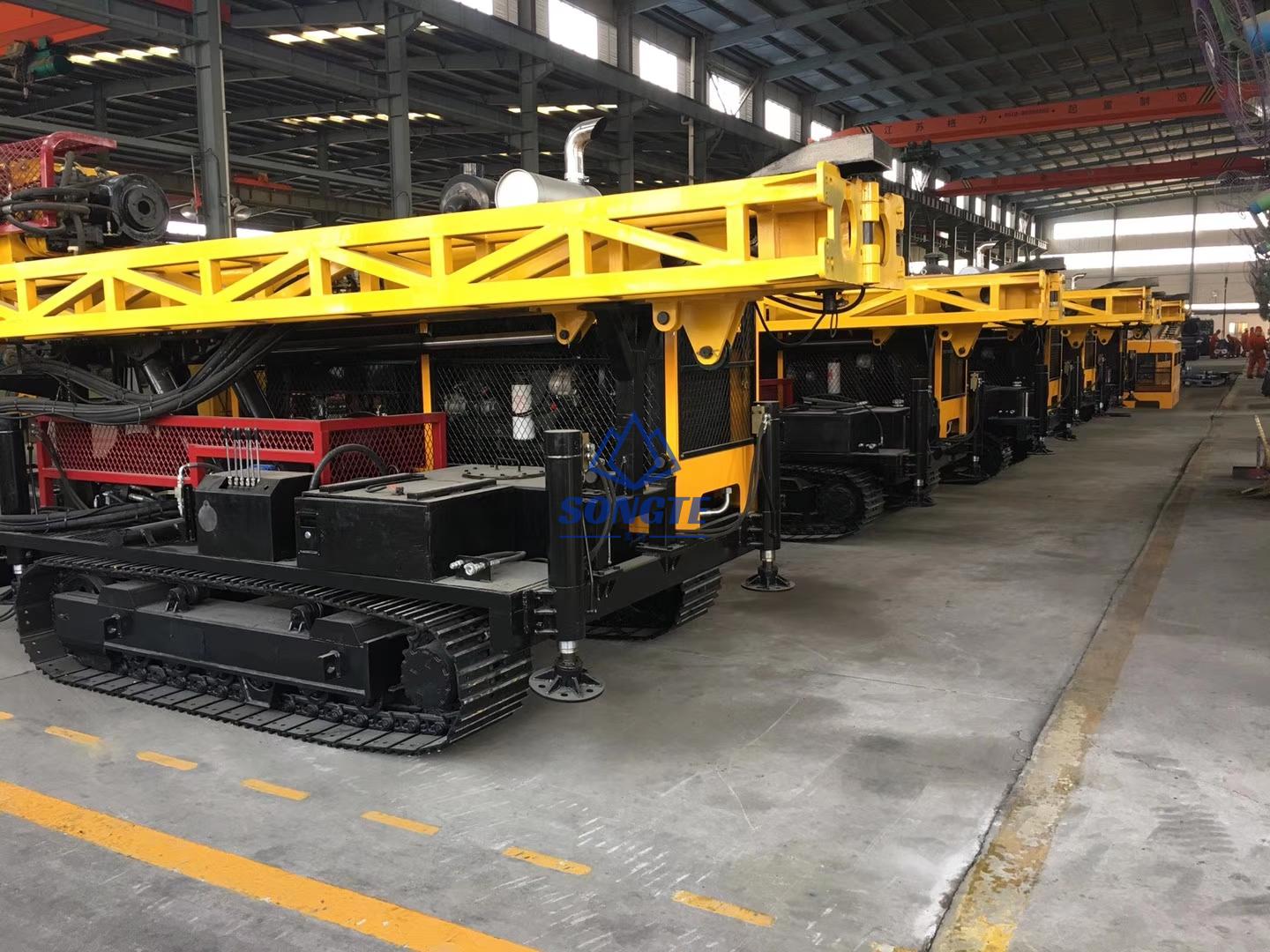

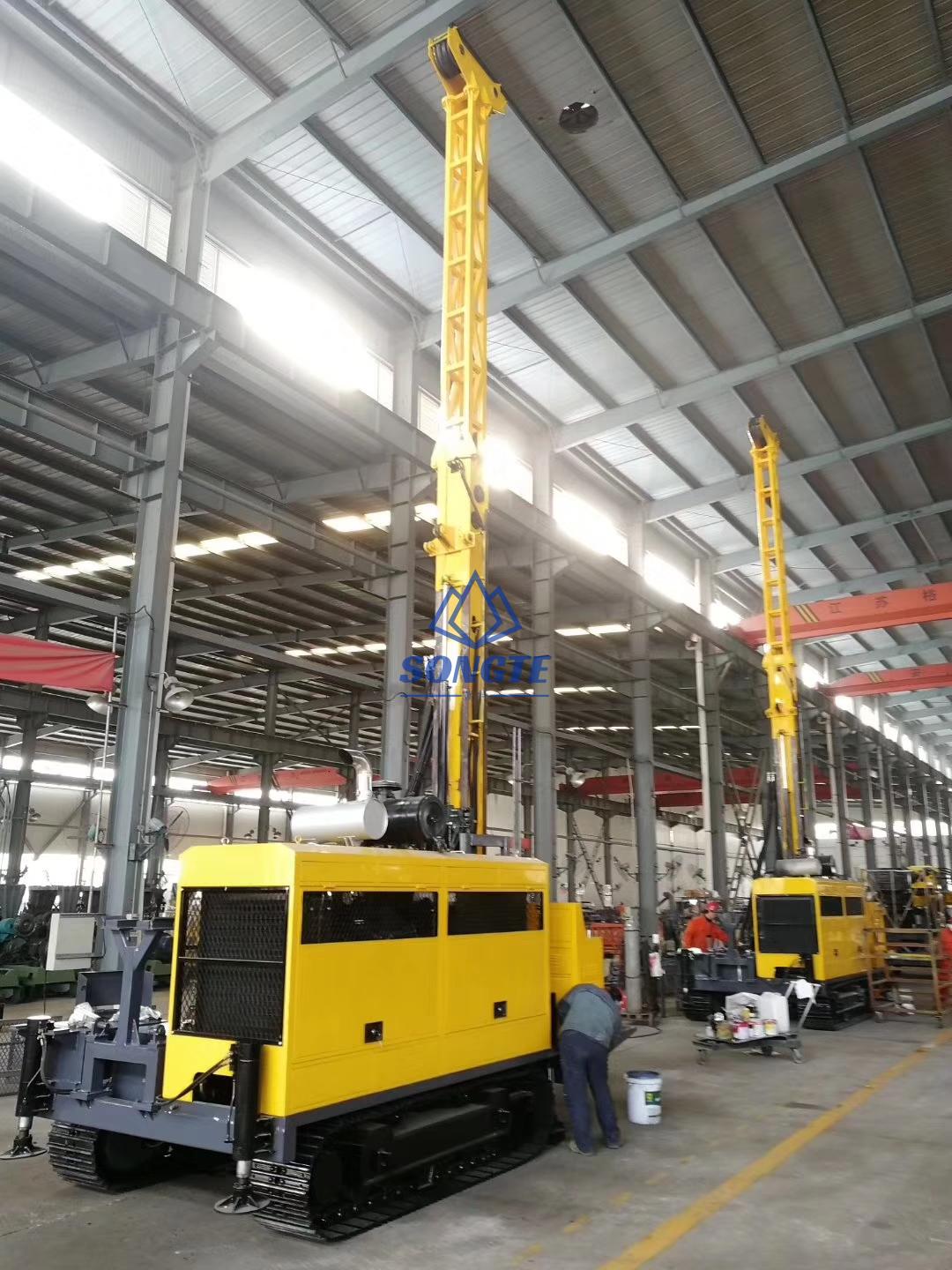

Hydraulic Core Drilling Rigs in Producing:
