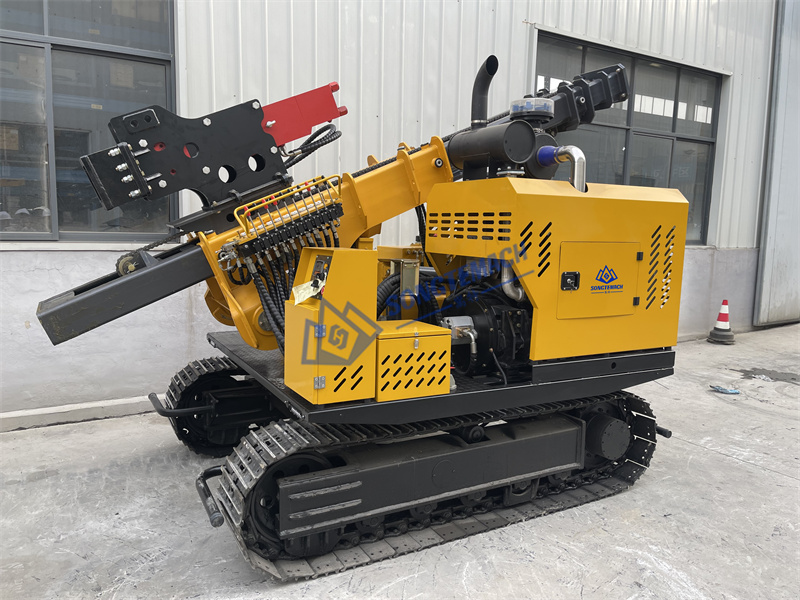

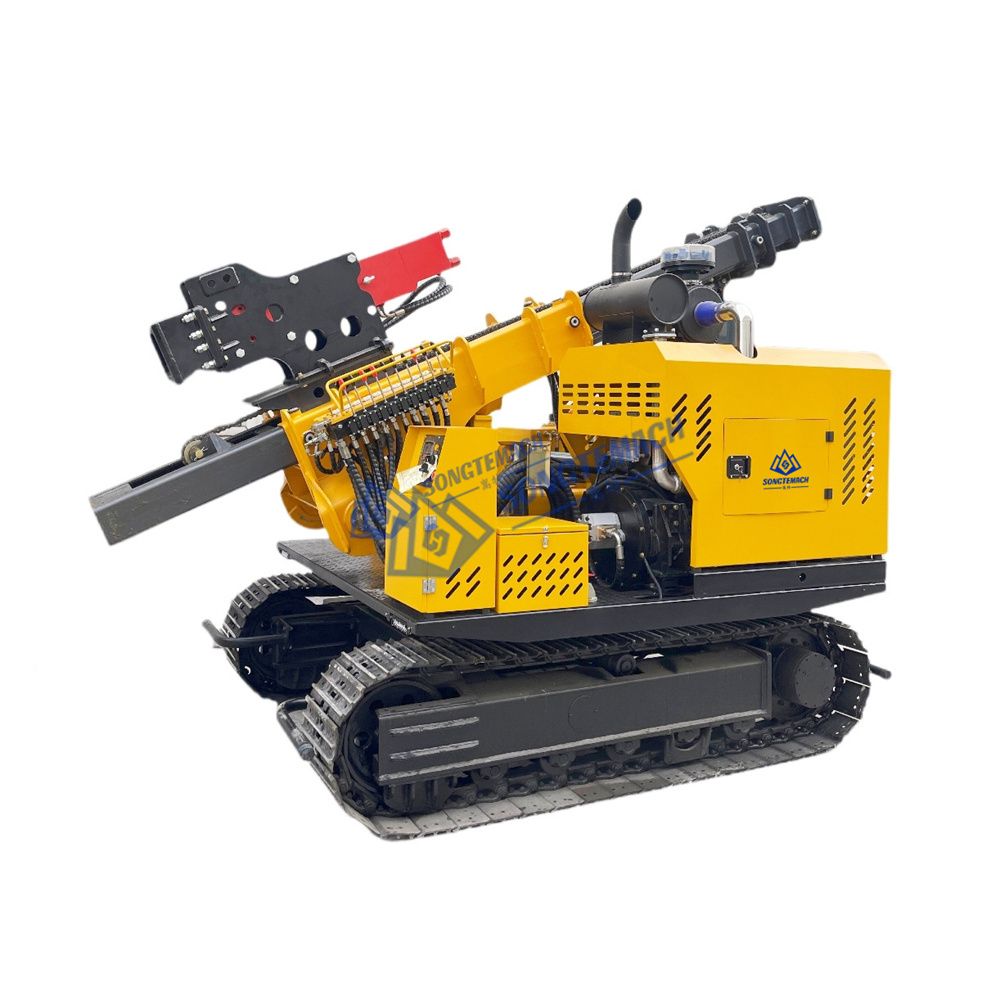

Máquina apisonadora de pilotes solar SPV-55Y Conductor de pilotes sobre orugas
Introducción
The SPV-55Y solar pile ramming machine, also known as a solar foundation driver, Controlador de poste solar, or solar pile installer, is designed for the modern solar energy landscape. Its compact structure allows for easy maneuverability, making it ideal for diverse applications, from large solar photovoltaic power station to small solar farm installations.
Experience flexible operation without compromising on strength, as the SPV-55Y adapts to various soil conditions while delivering exceptional piling efficiency. This advanced technology ensures quick installation, Reducción de los costos de mano de obra y los plazos de los proyectos.
Whether you’re installing ground-mounted systems or elevated solar panels, the SPV-55Y stands out as a reliable choice for contractors seeking high performance and stability in their solar projects. Embrace the future of renewable energy with the unmatched capabilities of the SPV-55Y solar pile driver.
Características principales:
- Compact appearance: The machine has a compact structure, flexible operation, retractable mast, and centralized operating handles for easy operation.
- Flexible structure: The mast can be adjusted 500mm left and right, and 300mm front and back, making it easy to adjust the pile position and high piling efficiency.
- Smart control: The pile driver is equipped with one-button straightening system, quickly adjust vertical; the remote control and GPS system can be installed.
- Optional engine: Engines can be equipped with Cummins and Yanmar, which are suitable for the emission standards of different countries.
- Easy to operate: The mobile operating console allows the operator to stand. The side operating console is safer, and only one person can complete the operation, saving labour costs.
- Chassis rotation: The pile driver can rotate 90°, isflexible in operation, and can be used in a variety of construction sites.
- Maximum pile length: 4.2m pile length.
Aplicación: Es ampliamente utilizado en diversas aplicaciones, como la instalación solar fotovoltaica, Sistemas fotovoltaicos montados en el suelo, Granjas solares, y construcción de centrales fotovoltaicas.
Parámetros técnicos:
| Working dimension(L*W*H)(milímetro) | 2500*2500*5000 |
| Dimensión de transporte(L*W*H)(milímetro) | 3500*2500*2500 |
| Peso de la máquina(kg) | 6000 |
| Motor(KILOVATIO) | Yanmar engine 53.KW /
Cummins 60KW/97KW |
| Máximo. Pile height(milímetro) | 4200 |
| Hammer impact energy(J) | 1250~1450 |
| Profundidad de perforación(estándar)(milímetro) | 3000 |
| Diámetro de perforación(milímetro) | Max.300 |
| Left and right sliding stroke(milímetro) | 500 |
| Front and rear sliding stroke(milímetro) | 300 |
| Chassis length(milímetro) | 2500 |
| Altura del chasis(milímetro) | 620 |
| Supine angle of movement mechanism(°) | 8° outside and 60° inside |
| Front and rear inclination of the motion mechanism(°) | 20° |
| Presión del sistema hidráulico(Mpa) | 20 |
| Total flow of hydraulic system(L/min) | 120 |
| Maximum travel speed(km/h) | 2.5 |
| Effective volume of hydraulic oil cabinet(L) | 120 |
| Effective capacity of diesel engine fuel tank(L) | 120 |

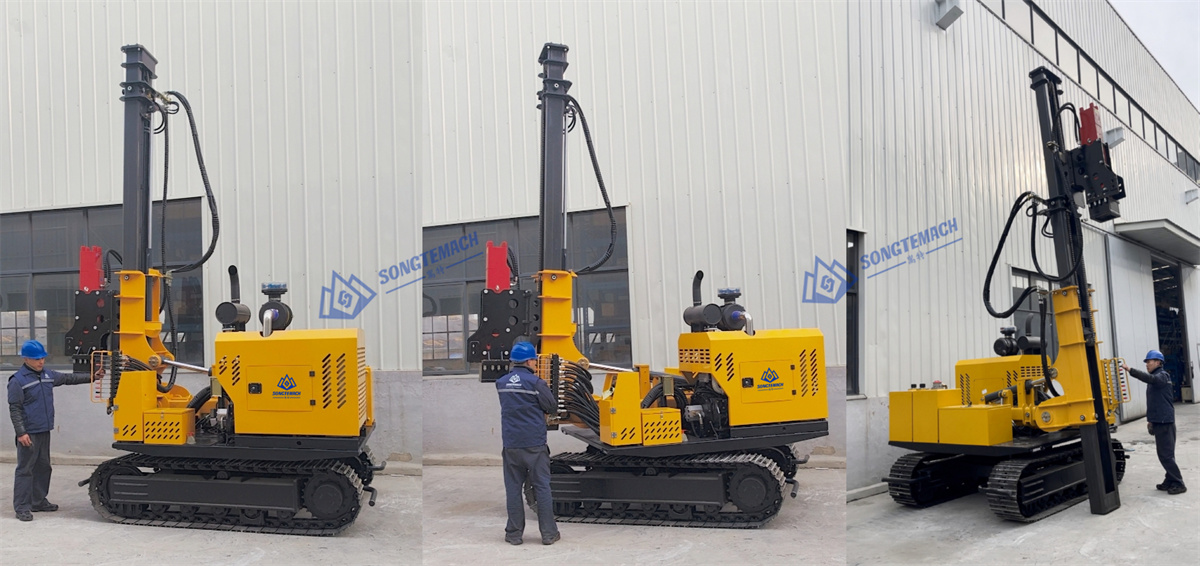

SPV-55Y Solar Pile Driver in Different Position:

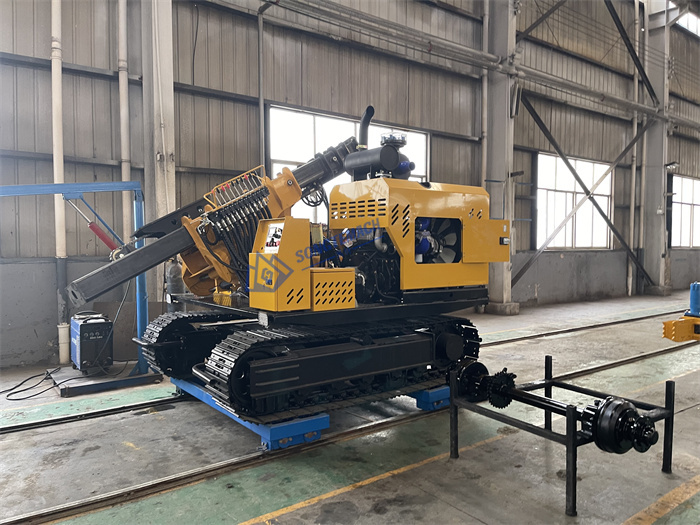

SPV-55Y Ramming Machine in Producing:
