Mini excavadora / Pequeña máquina excavadora
Mini excavadora / Small Digging Machine Features:
- Use domestic well-known brand Changchai 192F engine, strong power and stable working, or popular Koop Engine to meet Europe emission deman. Cooperate with US BRIGGS & STRATTON Engine to meet USA emission demand.
- High quality hydraulic pipes, long using life, not easy to leak.
- 100kg counterweight is added to the rear of the machine which making the machine work more stable and powerful.
SE series small excavators, available in models of 0.8 tons, 1 tonelada, 1.5 tons, 1.8 tons, and 2 tons, are widely used in rural orchards, field nurseries, hilly and mountainous areas, as well as various engineering contracts, facilitating pipeline excavation, soil filling and ditch excavation, and dredging of river courses.
Mini excavadora / Small Digging Machine Technical Parameters:
| Modelo | SE-10 | SE-15 |
| Peso | 1000kg | 1500kg |
| Digging bucket capacity | 0.025m³ / 120kg | 0.03m³ |
| Bucket width | 380milímetro | 380milímetro |
| Motor | Changchai | Changchai |
| Cilindro | Soltero, fan cooling | Double, Refrigeración por agua |
| Potencia nominal | 8.2kilovatio, 3600r/min | 12kilovatio, 3600r/min |
| Velocidad al caminar | 1.5km/h | 2.4km/h |
| Overall size | 2775x930x2219mm | |
| Track gauge | 830-1000milímetro | 935milímetro |
| Track length | 1230milímetro | 1235milímetro |
| Platform ground clearance | 380milímetro | 380milímetro |
| Rear turning radius | 784milímetro | 870milímetro |
| Chassis width | 896milímetro | 1000milímetro |
| Track width | 180milímetro | 175milímetro |
| Track height | 320milímetro | 320milímetro |
| Máximo. Digging depth | 1650milímetro | 1735milímetro |
| Vertical digging depth | 1375milímetro | 1030 |
| Máximo. Digging height | 2610milímetro | 2585milímetro |
| Máximo. Dump height | 1850milímetro | 1810milímetro |
| Máximo. Digging radius | 2850milímetro | 2815milímetro |
| Min. Turning radius | 1330milímetro | 1390milímetro |
| Dozer blade max. Altura de elevación | 345milímetro | 295milímetro |
| Dozer blade max. Digging depth | 255milímetro | 270milímetro |

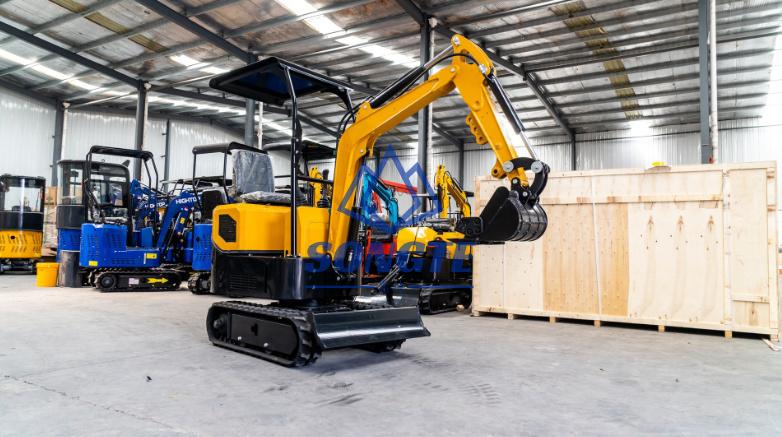

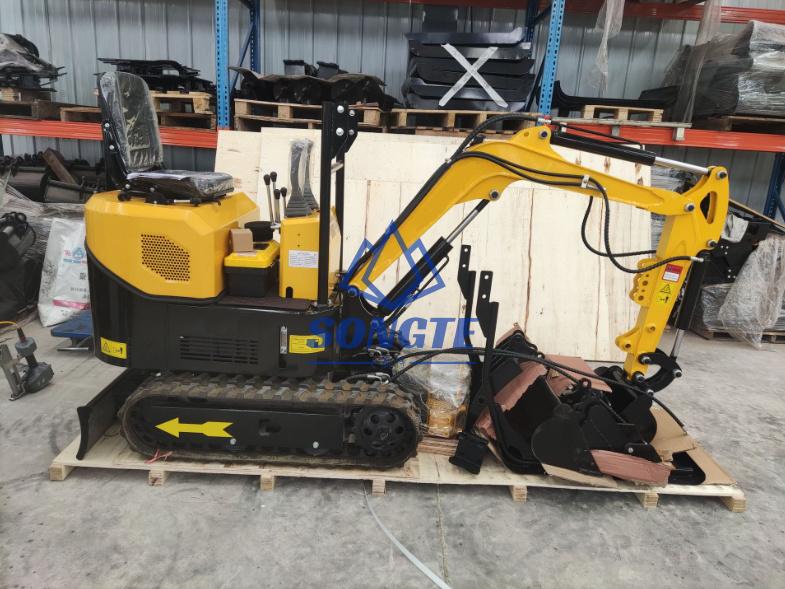

Mini excavadora / Small Digging Machine Packing:

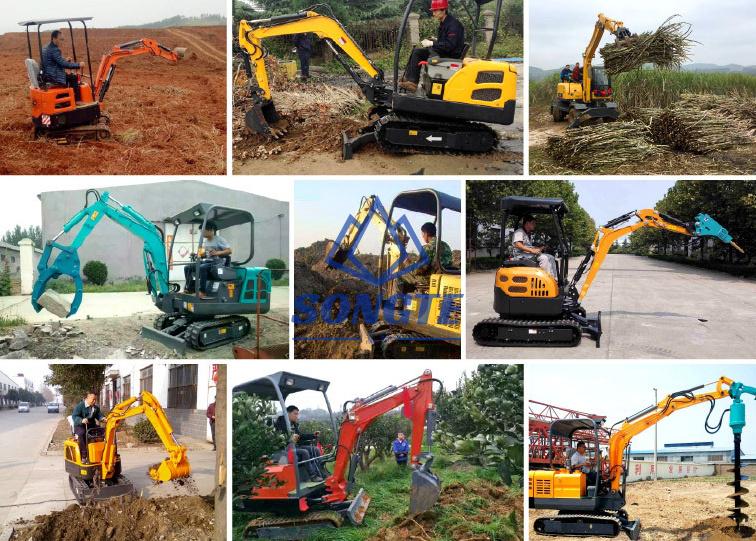

Mini excavadora / Small Digging Machine Application:
